Tank Capacity: 15000 Liters (15m³)
Chassis Platform: Dongfeng Huashen F5 4X2
Pump Flow Rate: 60 m³/h
Front Flush Width: ≥ 12m
Water Cannon Reach: ≥ 30m

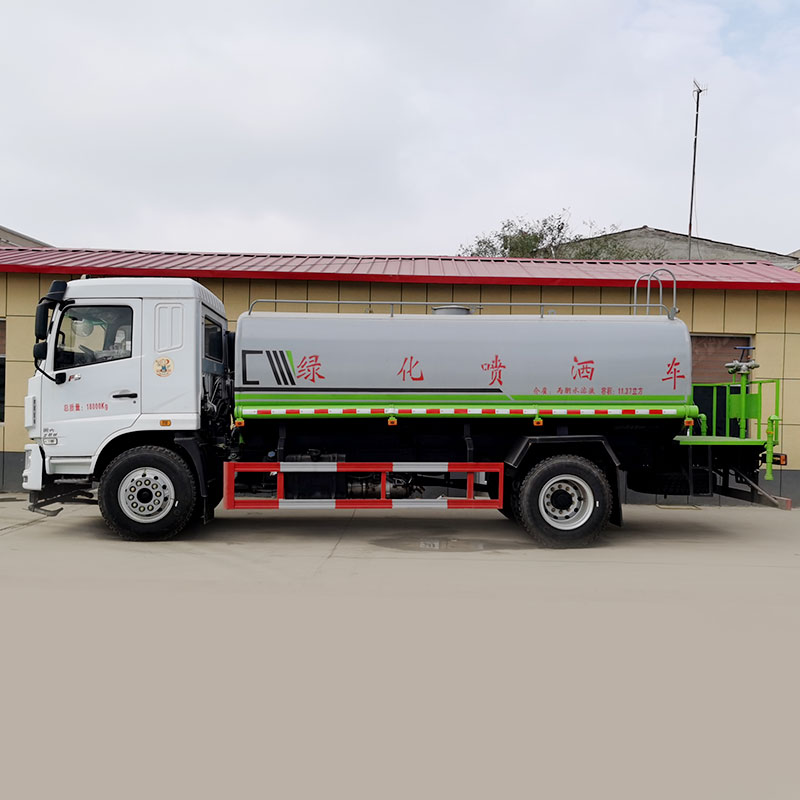

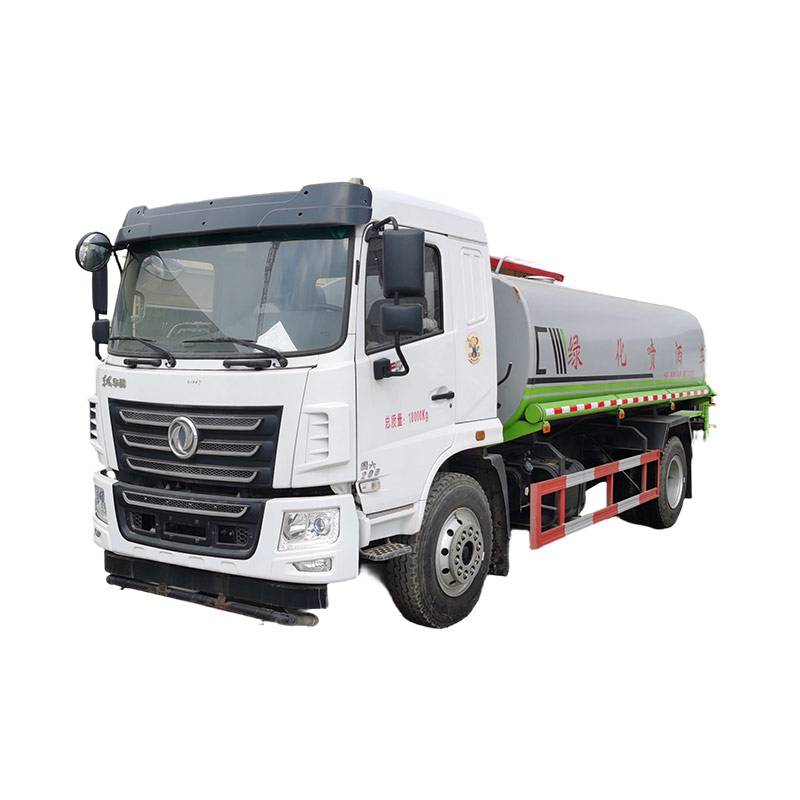

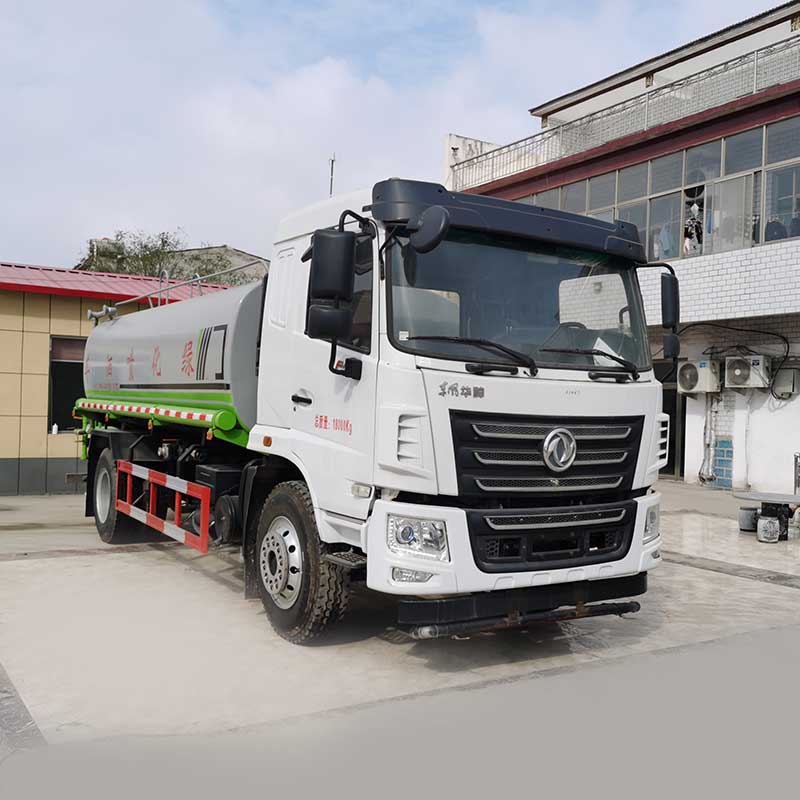

Dongfeng Huashen F5 15m³ Water Truck，this multi-functional vehicle integrates road flushing, dust suppression, landscaping irrigation, and emergency firefighting. Equipped with a 15m³ large-capacity tank and a high-pressure pump, it is widely used for urban road and plaza cleaning, highway and park greenbelt watering, dust control at construction sites and mines, and emergency water transport in arid regions. With front flushing, rear sprinkling, side spraying, and a long-range water cannon that doubles for firefighting, it provides an efficient, all-scenario environmental solution.
Benefits
1. Premium Anti-Corrosion Tank
High-tensile steel with an advanced internal epoxy coating guarantees zero rust and a maximized service life.
2. Front-Bumper Road Flushing System
Dongfeng Huashen F5 4X2 15000L Water Truck equipped with high-impact front flush nozzles (duckbill nozzles) that deliver powerful water pressure to sweep away road dirt and debris instantly.

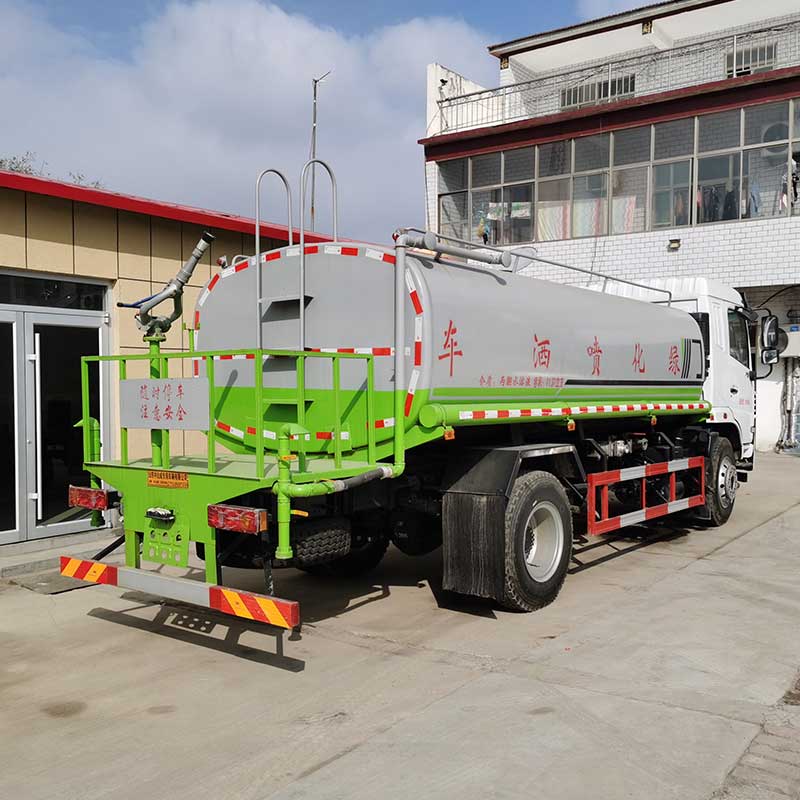

3. Long-Range 360º Water Cannon
Dongfeng Water Tank Truck Features wide rear dust-suppression sprinkling alongside a 360º rotating water cannon with a 30m reach for greening and emergency firefighting.
4. Smart In-Cab Controls & PTO Driven by a rugged chassis and optimized PTO for steady high pressure, with all spraying modes controlled effortlessly from inside the cabin.
Specification
| Parameter | Specification | Parameter | Specification |
| Type | Greening/Sprinkler Truck | Truck Type | Water Tank Sprinkler/Landscape Irrigation Truck |
| Emission Standard | Euro 3/Euro 5 | Fuel | Diesel |
| Drive Form | 4×2/6×4 | Transmission | Manual |
| Warranty | 1 Year | Mechanical Test Report | Provided |
| Video Factory Inspection | Provided | Core Components | Engine /Pump/Spray System |
| Brand | Dongfeng | Chassis Model | Huashen F5 |
| Water Tank Volume | 15m³ | Spray Width | 12-18m |
| Engine Power | 140-180 HP | Engine Brand | Dongfeng Engine |
| Wheelbase | 3800-4500 mm | Steering | Power Steering |
| Pump Flow | 30-50 m³/h | Hydraulic System | Hydraulic Driven Pump |
| Spray Nozzles | Adjustable,Rotatable | Operation System | Manual+Electric Control |
| Tire Specification | 8.25R20/9.00R20 | Cabin | Standard CabinA/C Optional |
| Color | Optional | Application | Urban Streets,Parks,Greening Projects |
FAQ
Q1: What tank material is used, and is it rust-proof?
A: Shacman F3000 6X4 20000L Water Tank Truck built with 5mm high-tensile Q235 carbon steel (or 304 stainless steel). Carbon steel tanks feature an internal epoxy anti-corrosion coating to guarantee zero rust.
Q2: What are the spraying functions and ranges?
A: Features a front flush (14m width via duckbill nozzles), wide rear sprinkle for dust suppression, and a 360º water cannon 30m for greening.
Q3: Can the spray system be controlled from the cabin?
A: Yes. An in-cab pneumatic valve control system allows the driver to switch all spraying modes directly via dashboard switches.
Q4: Can the truck pump water from rivers or ponds? A: Yes. The engine-driven PTO pump 60CBM/h supports self-priming suction up to 7M deep from natural water sources.
Q5: How do I choose between 4×2, 6×4, and 8×4 chassis?
A: Select based on tank capacity:
• 4×2 (6-Wheeler): For 5 CBM- 15CBM (urban/nimble).
• 6×4 (10-Wheeler): For 15CBM – 22CBM (mining/construction).
• 8×4 (12-Wheeler): For 25CBM+ (heavy-duty payload).
Zhongchuangwei Special Purpose Vehicle Co Ltd is a professional manufacturer and exporter specializing in the production and global supply of special purpose vehicles.
Our recommended solutions are designed based on real application scenarios, ensuring performance, durability, and cost efficiency.
Our vehicles are designed to deliver durability, efficiency, and long-term value in demanding environments worldwide.
Tell us your project requirements and working conditions. Our team will recommend the most suitable vehicle configuration for your needs.
