Chassis Model : SINOTRUK SITRAK 8X4
Water Tank : 8,000 L / 10,000 L（customized）
Foam Tank : 2,000 L / 4,000 L（customized）
Tank Material : 316L Stainless Steel / PP Composite

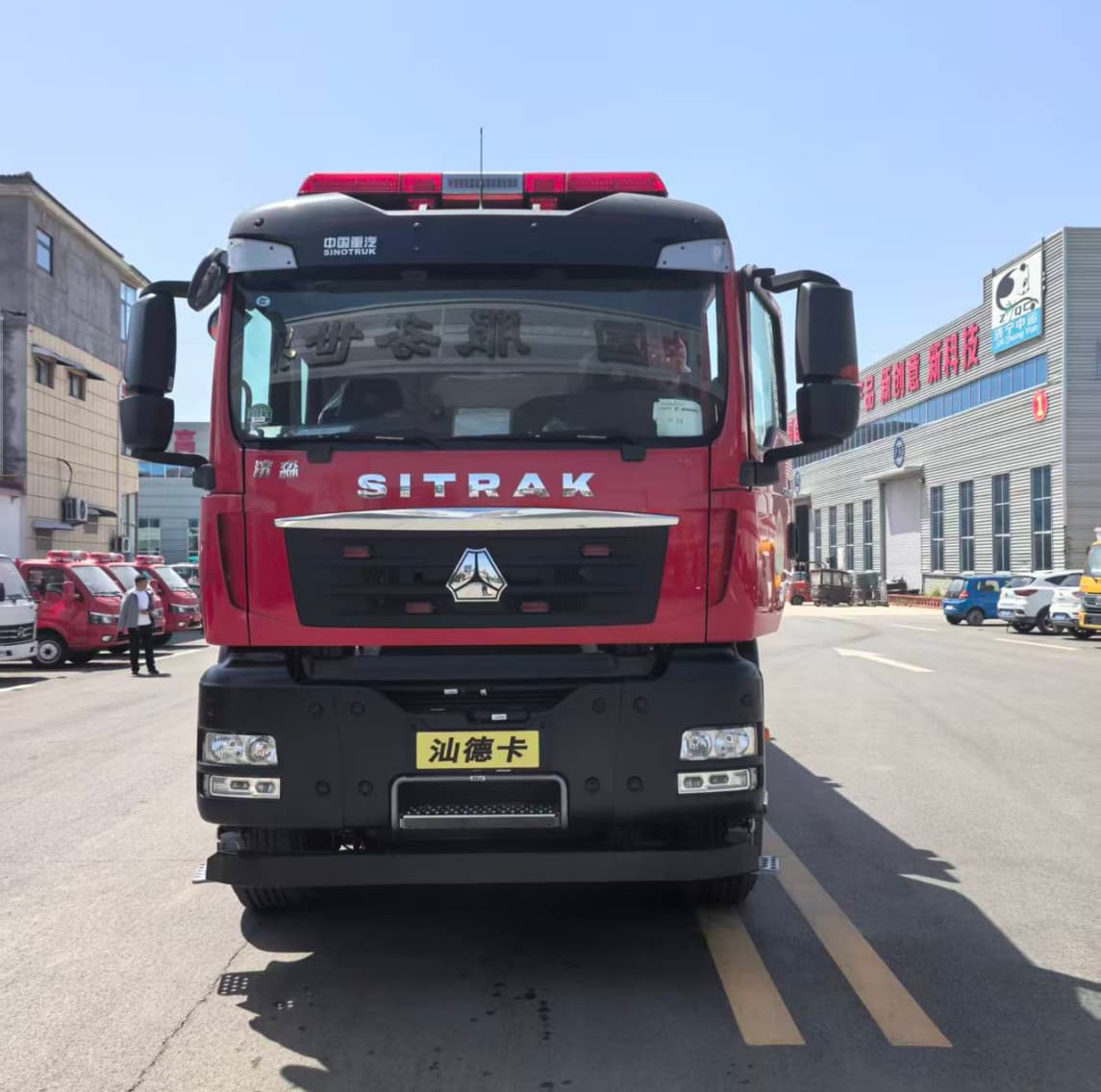

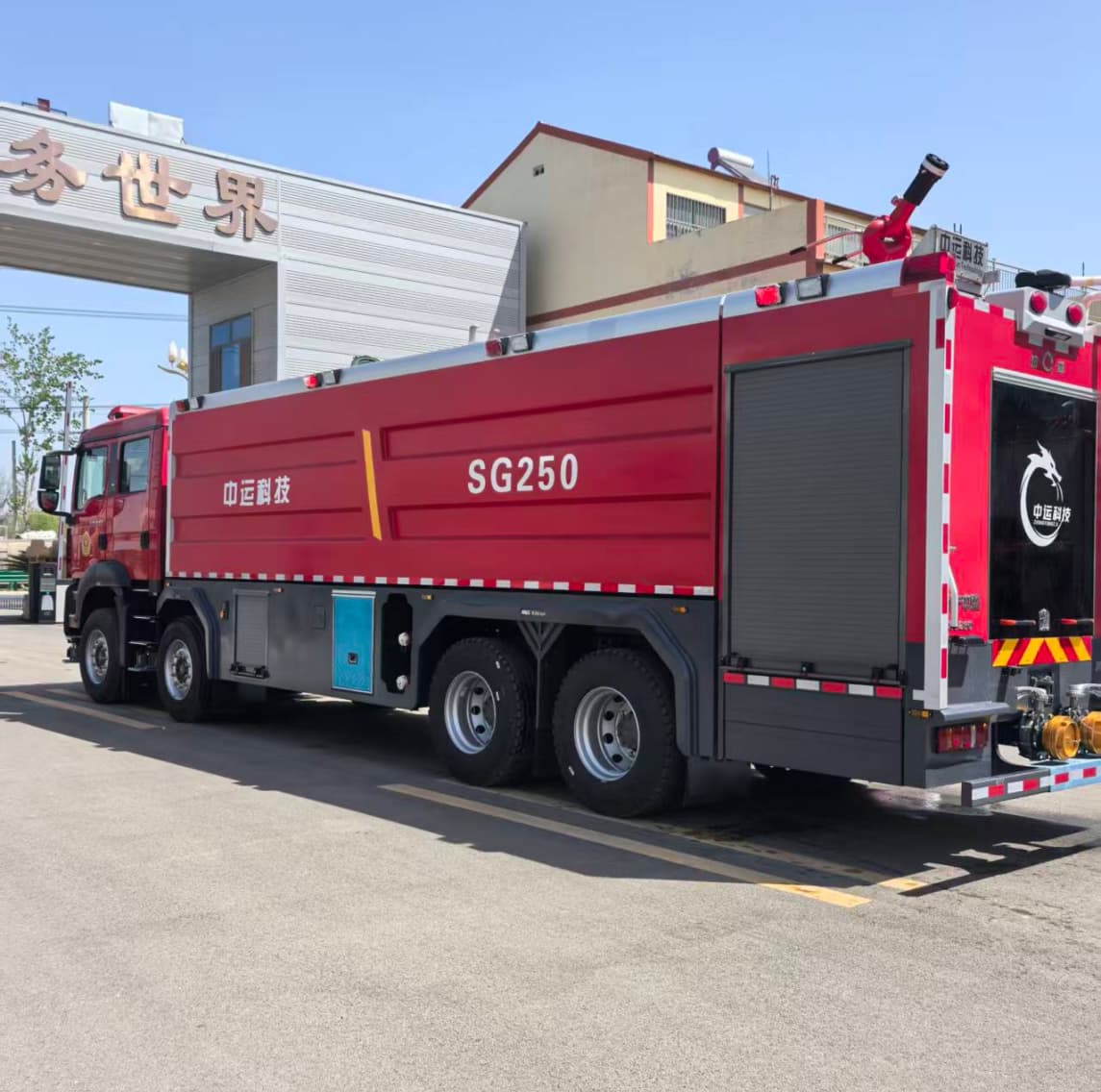

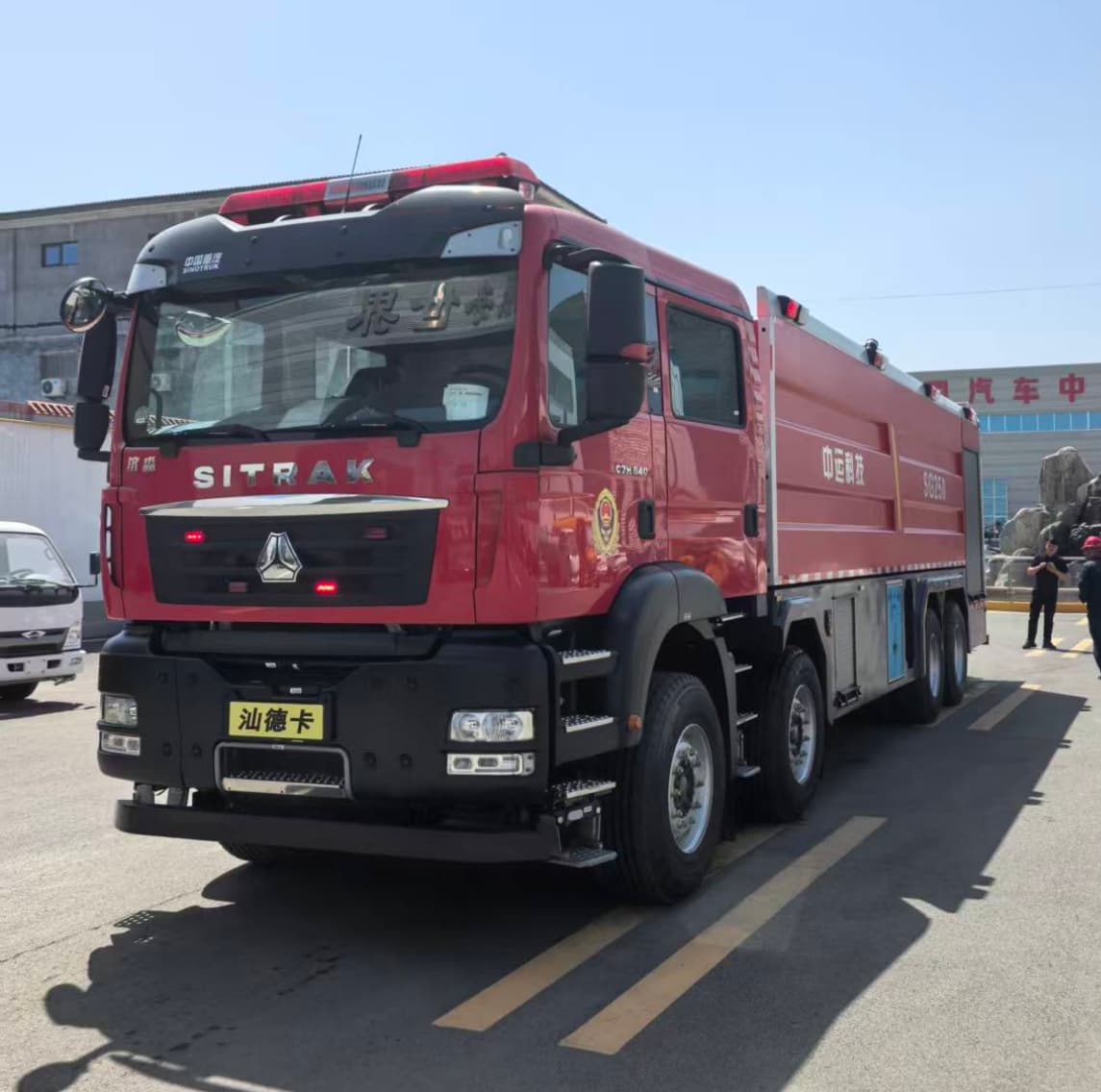

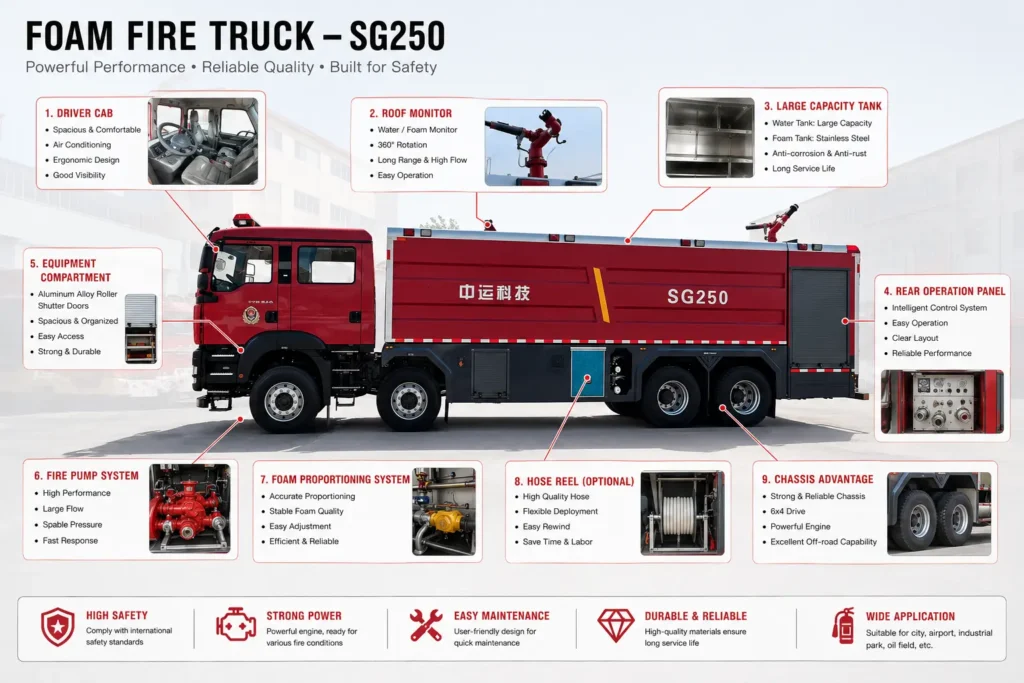

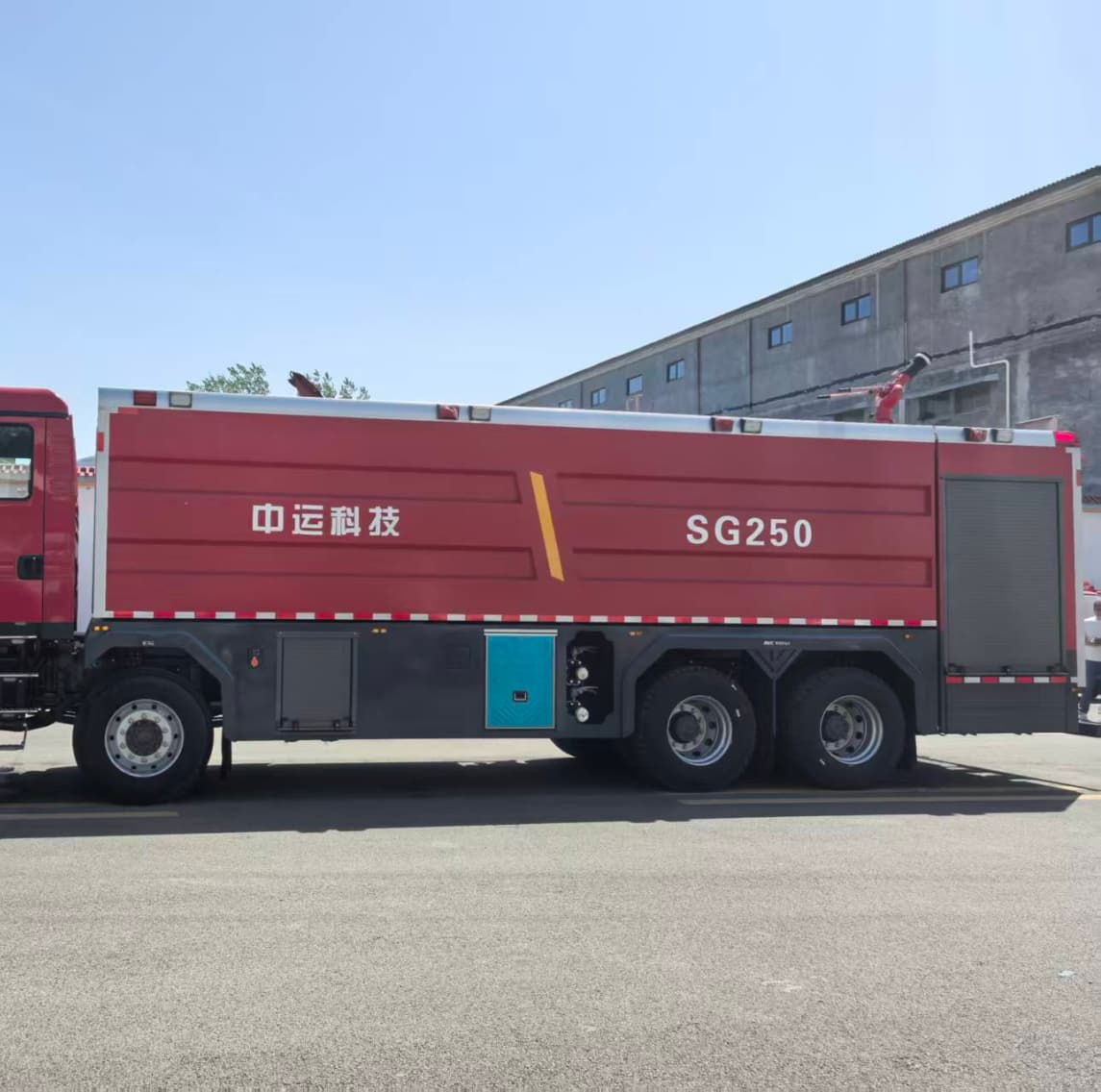

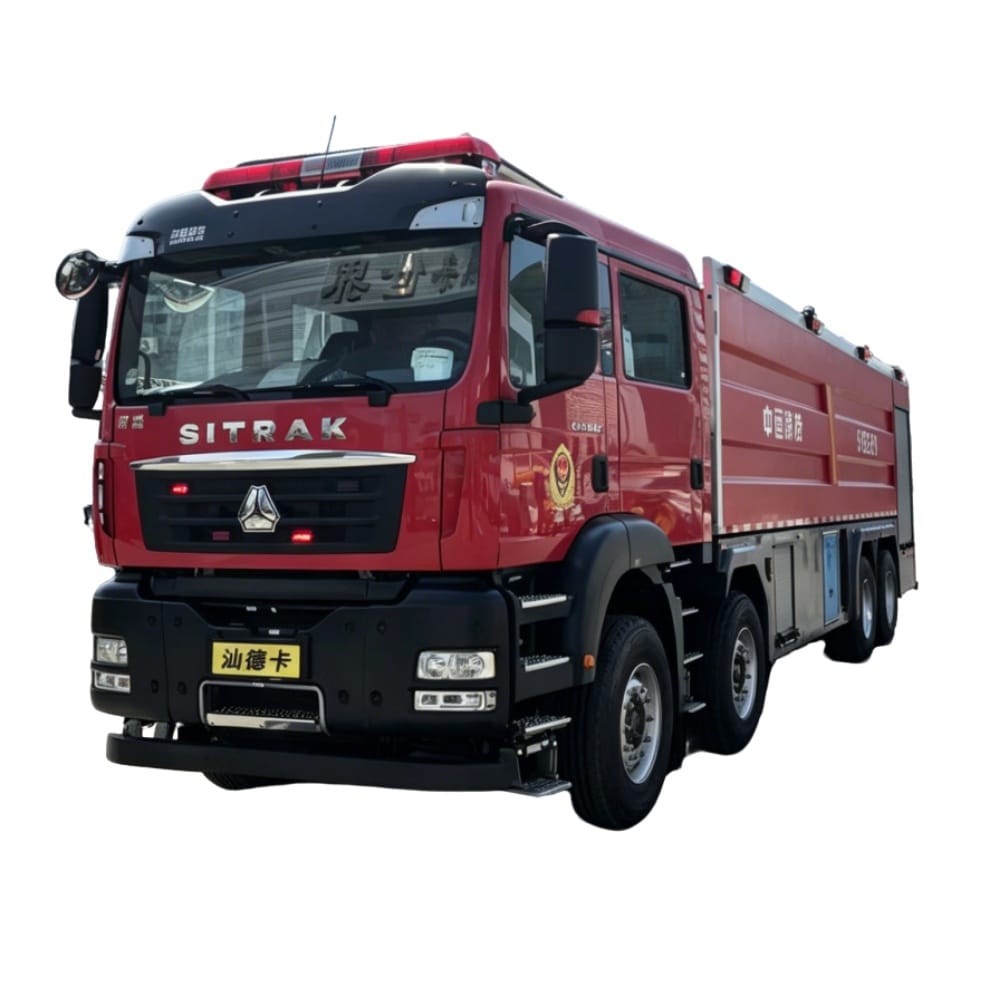

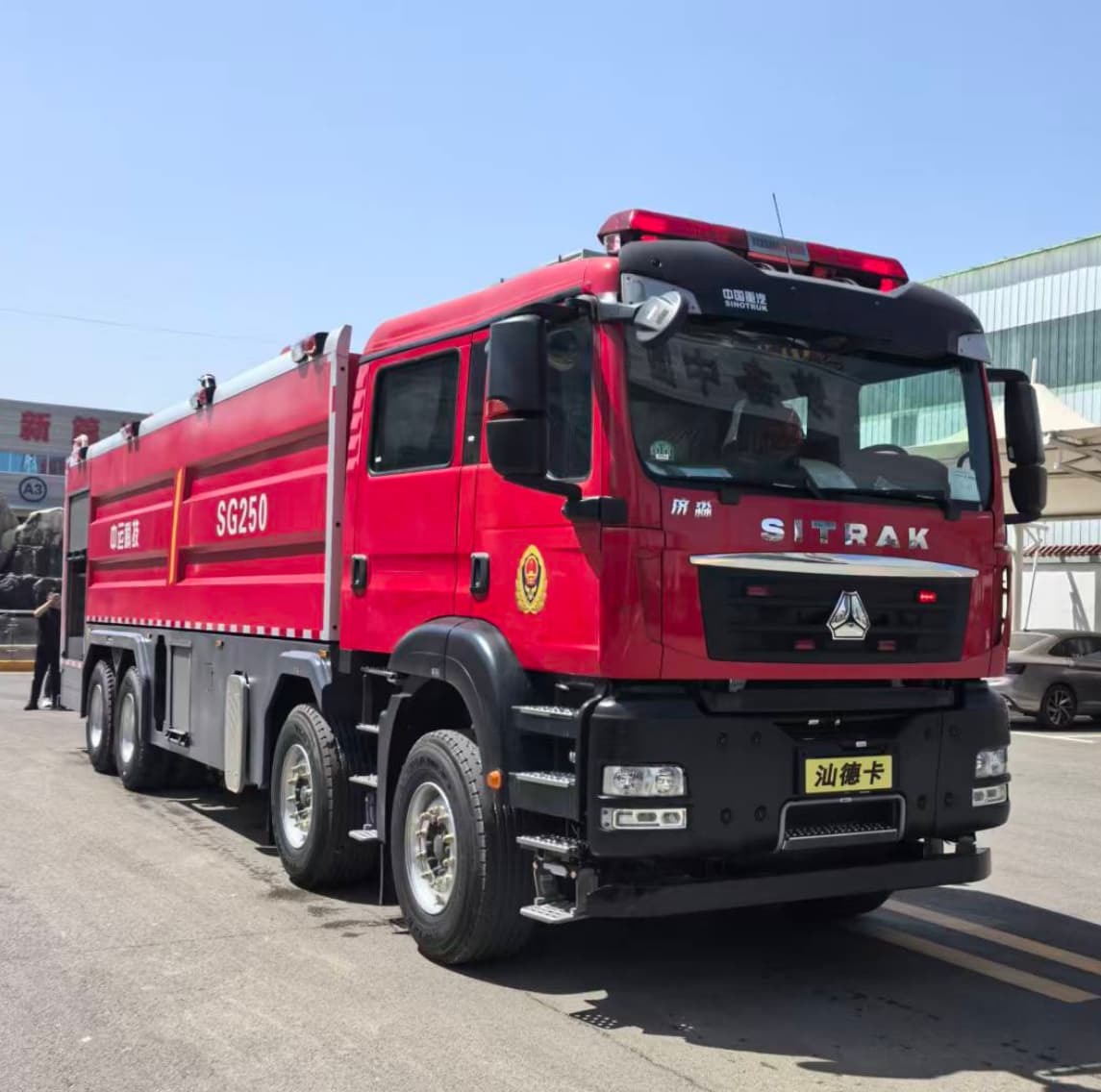

The SINOTRUK SITRAK 8X4 Heavy-Duty Water & Foam Fire Truck features a massive 25-ton dual-agent tank, integrating advanced German MAN technology for maximum reliability.
Engineered for high-stakes emergencies, this powerful vehicle seamlessly delivers high-volume water streams and thick foam blankets to extinguish complex fires. It is the ultimate rapid-response solution for municipal firefighting, high-rise rescue, oil depots, and petrochemical complexes.
Benefits
1. German-engineered chassis
Utilizing MAN engine and ZF gearbox from Germany, it boasts the top-tier stability and high uptime of imported vehicles.Working continuously for extended periods in harsh, high-temperature environments.
2. Strength power
Equipped with a full-power PTO, this ensures that the water pump and foam system have a continuous and undiminished power supply when spraying water while driving or when spraying foam at high pressure for extended periods.
3. Heavy-duty and high-capacity
Water and Foam Fire Truck has an ultra-large liquid carrying capacity of 8-16 tons (water + foam), equipped with high-specification fire pumps and fire monitors, its water jet range can reach over 70 meters, and its foam jet range can reach over 65 meters, easily handling large-scale fires or fires in mid- to high-rise buildings.
4. Robust and corrosion-resistant
Employing a lightweight aluminum alloy superstructure and special corrosion-resistant tank body, it is resistant to foam liquid corrosion and durable.
Specification
| Item | Specification |
| Brand &Model | Sinotruk Sitrak Zz5356v524mf5 |
| Overall Dimensions | 11980×2530×3780 mm |
| Gross Vehicle Weight | 42450 kg |
| Engine | MC11.46-61,341 kW,10518L,Diesel,Euro VI |
| Drive Type | 8X4,Wheelbase:1600+1400 mm |
| Cabin | 4-door double-row,6 persons(2+4) |
| Max Speed | 90 km/h |
| Fire Pump Flow | 80 L/s @1.0 MPa |
| Tank Volume | 25 m³water(JMF160) |
| Fire Monitor Range | ≥70m(water) |
| Transmission | Manual,FullPower PTO |
| Tire Size | 385/65R22.5/315/80R22.5 |
FAQ
Q1: Emission & Fuel?
A: We offer Euro 2/3 for high-sulfur fuel regions (Africa/Central Asia) and Euro 5/6 for strict regulatory markets (South America/Middle East).
Q2: Chassis Reliability?
A: Sitrak is built on German MAN technology. It delivers European-standard durability, uptime, and extreme heat resistance at a much better price.
Q3: Pump and Roll?
A: Yes. Equipped with a Full-Power Sandwich PTO, it fully supports firefighting while the vehicle is in motion.
Q4: Tank Anti-Corrosion?
A: Tanks use 316L Stainless Steel, heavy-duty Epoxy Coating, or PP/GRP composites to 100% prevent foam chemical corrosion.
Q5: Performance & Range?
A: Armed with world-class pumps (Darley/Godiva/Top Chinese brands). Water range: 70m+ / Foam range: 65m+.
Q6: Coupling Standards?
A: 100% customized. We pre-install Storz, John Morris, NH, or Gost couplings to perfectly match your local fire hose standards.
Q7: Language & Manuals?
A: All cabin/pump control panels, gauges, and manuals are in 100% English (Spanish/French also available).
Q8: Spare Parts?
A: Since it shares German MAN DNA, core parts are globally available. Plus, Sinotruk’s worldwide service network ensures rapid parts delivery.
Zhongchuangwei Special Purpose Vehicle Co Ltd is a professional manufacturer and exporter specializing in the production and global supply of special purpose vehicles.
Our recommended solutions are designed based on real application scenarios, ensuring performance, durability, and cost efficiency.
Our vehicles are designed to deliver durability, efficiency, and long-term value in demanding environments worldwide.
Tell us your project requirements and working conditions. Our team will recommend the most suitable vehicle configuration for your needs.
