Tank Capacity: 20000 Liters (20m³)
Chassis Platform: Shacman F3000 6X4
Pump Flow Rate: 60 m³/h
Front Flush Width: ≥ 12m
Water Cannon Reach: ≥ 30m

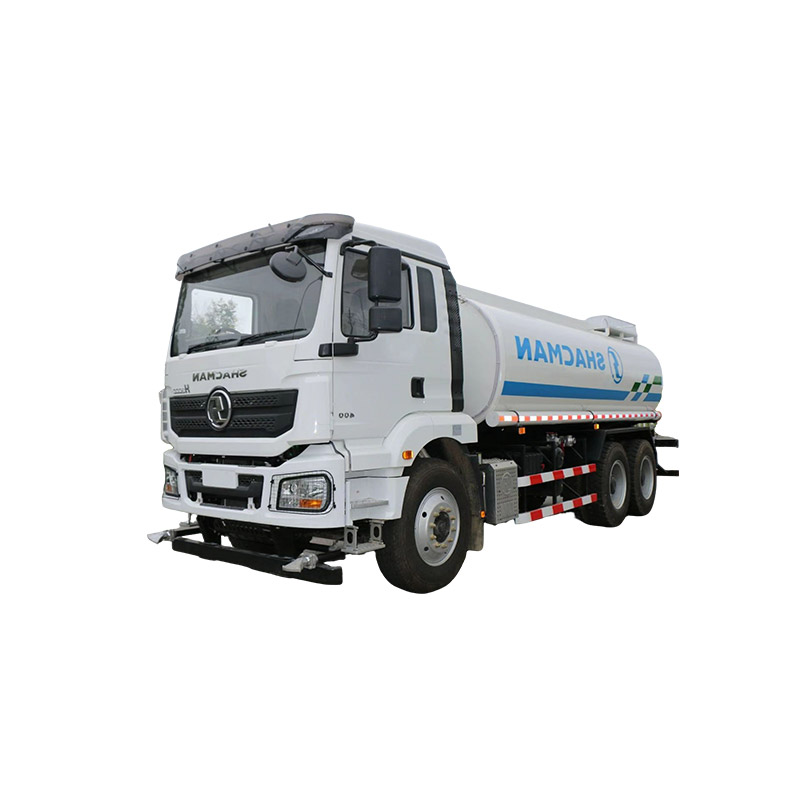

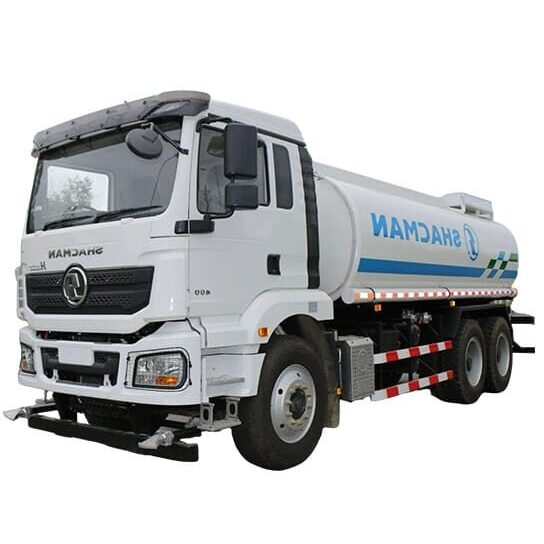

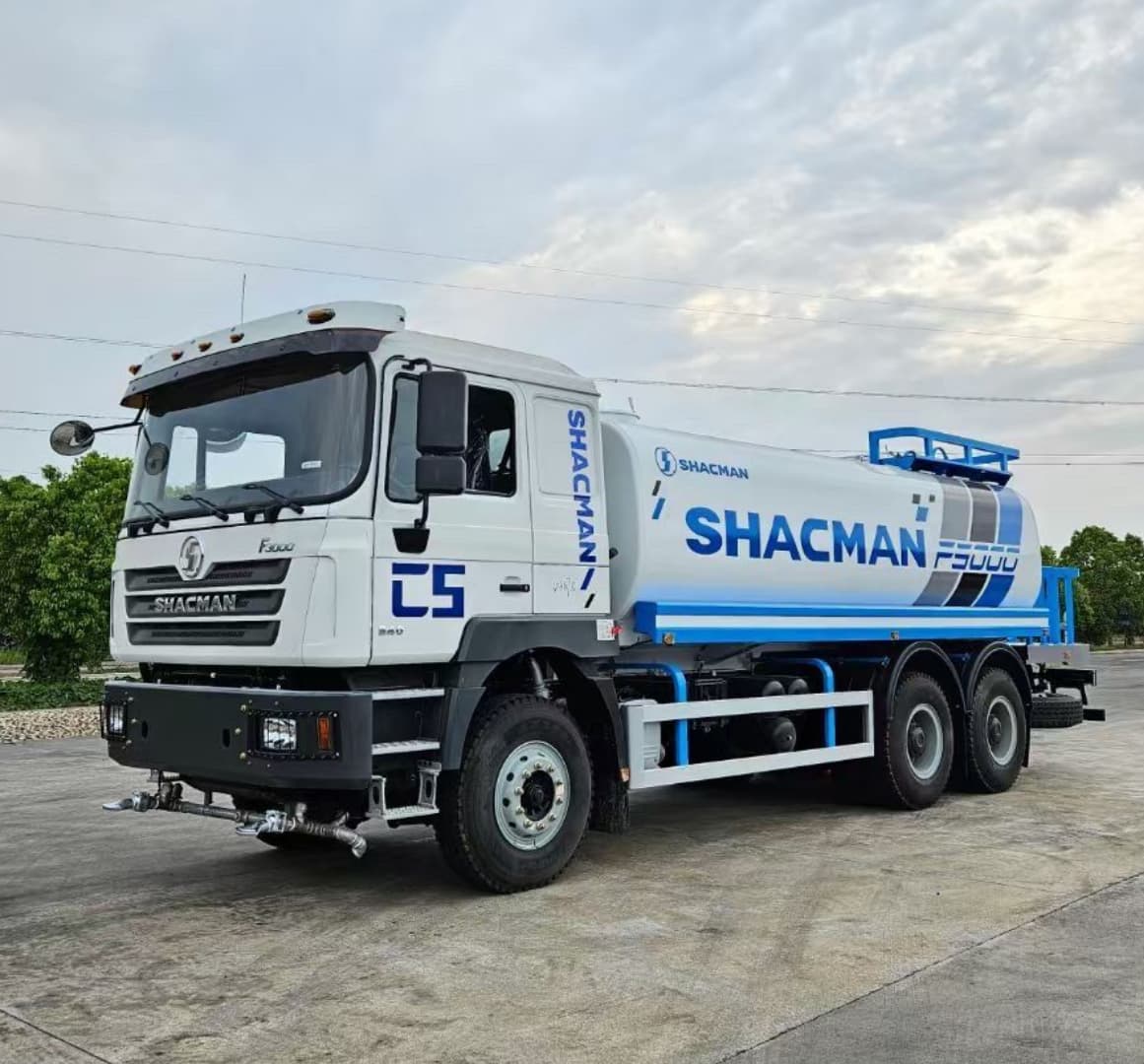

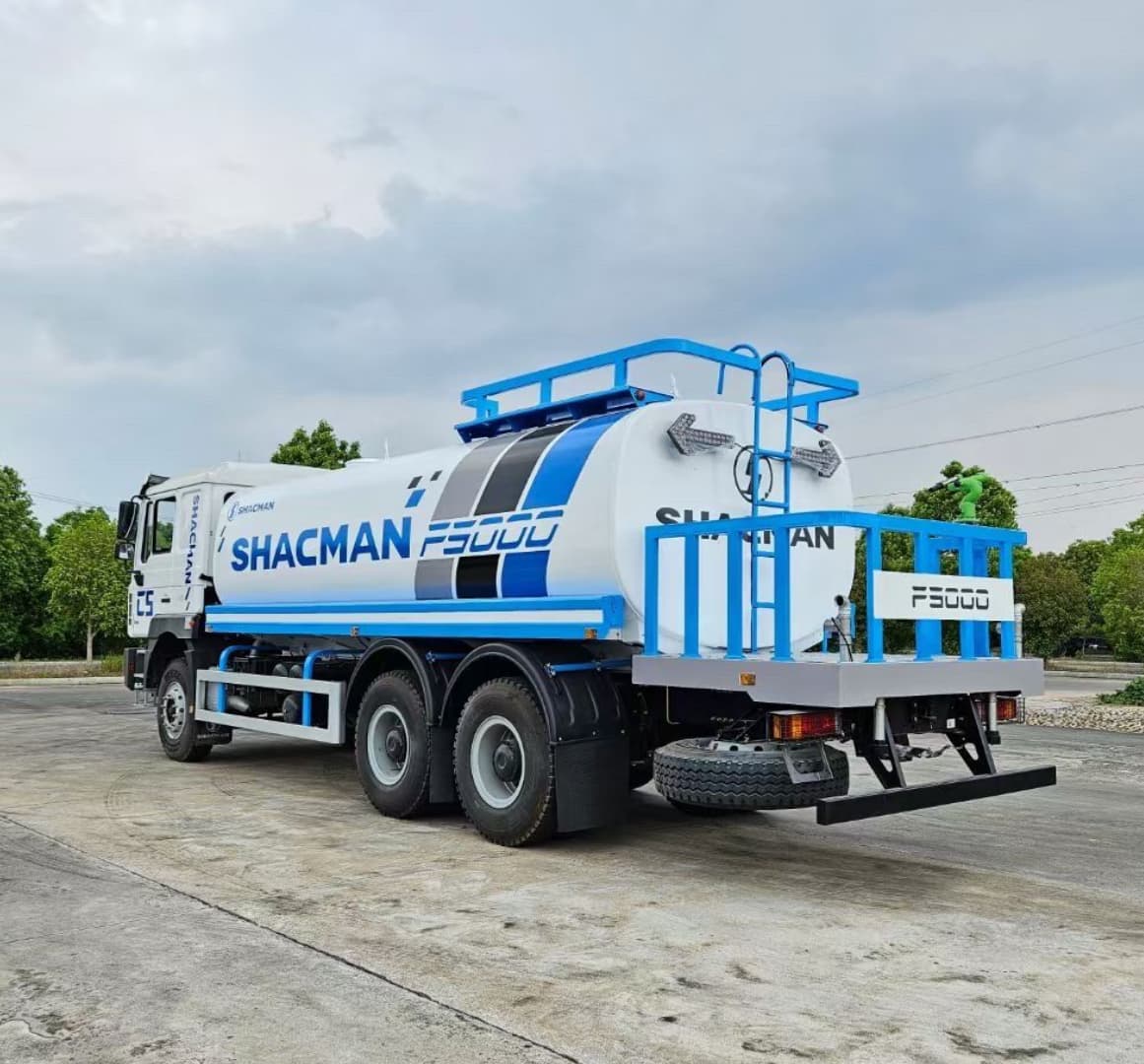

The Shacman F3000 6X4 20000L Water Tank Truck is a heavy-duty municipal workhorse engineered for large-scale dust suppression, road flushing, and emergency firefighting. Built on the rugged 6X4 F3000 chassis, its massive 20,000-liter carbon steel tank features a multilayer internal anti-corrosion coating to guarantee zero rust. Driven by a high-torque engine and reliable PTO, it powers an in-cab controlled front flushing system, wide rear sprinklers, and a long-range 360º water cannon for maximized urban sanitation efficiency.

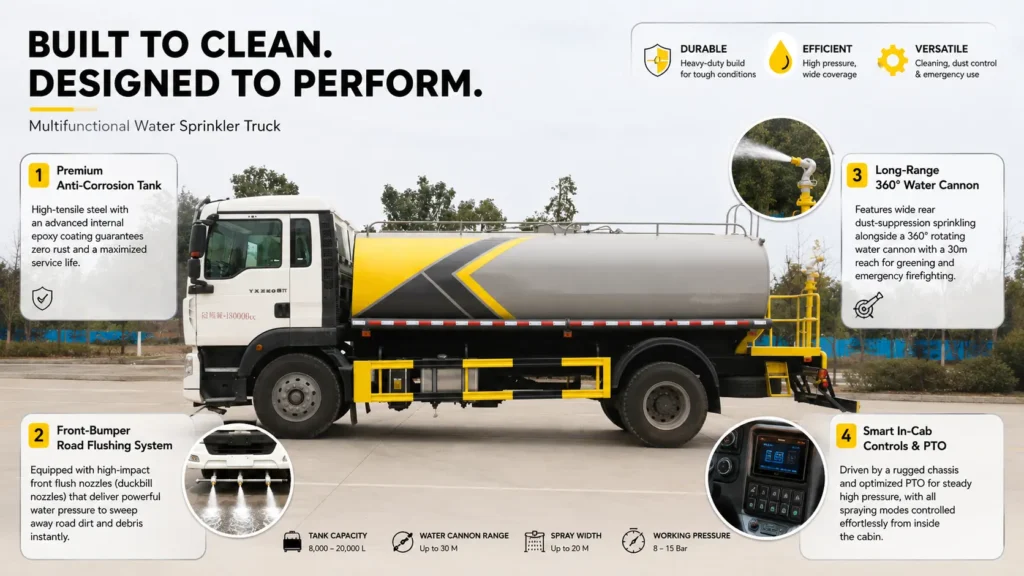

Benefits
1. Premium Anti-Corrosion Tank
High-tensile steel with an advanced internal epoxy coating guarantees zero rust and a maximized service life.
2. Front-Bumper Road Flushing System
Water Sprinkler Truck equipped with high-impact front flush nozzles (duckbill nozzles) that deliver powerful water pressure to sweep away road dirt and debris instantly.
3. Long-Range 360º Water Cannon
Shacman Water Tank Truck Features wide rear dust-suppression sprinkling alongside a 360º rotating water cannon with a 30m reach for greening and emergency firefighting.
4. Smart In-Cab Controls & PTO
Driven by a rugged chassis and optimized PTO for steady high pressure, with all spraying modes controlled effortlessly from inside the cabin.
Specification
| Item | Specification |
| Brand &Model | Shacman 6×4 Water Sprinkler Truck |
| Drive Type | 6X4 |
| Water Tank Volume | 15-25 m³ |
| Engine | Weichai/Cummins Diesel Engine,270-340 HP |
| Emission Standard | Euro 5/China National Stage VI |
| Transmission | Manual 10/12-speed |
| Cabin | Single-row,2-3 seats |
| Sprinkling Width | 12-15m |
| Spray Range | ≥30m(cannon) |
| Pump Flow Rate | 40-60 m³/h |
| Max Speed | 90 km/h |
| Body Color | White with blue decorative strips |
FAQ
Q1: What tank material is used, and is it rust-proof?
A: Shacman F3000 6X4 20000L Water Tank Truck built with 5mm high-tensile Q235 carbon steel (or 304 stainless steel). Carbon steel tanks feature an internal epoxy anti-corrosion coating to guarantee zero rust.
Q2: What are the spraying functions and ranges?
A: Features a front flush (14m width via duckbill nozzles), wide rear sprinkle for dust suppression, and a 360º water cannon 30m for greening.
Q3: Can the spray system be controlled from the cabin? A: Yes. An in-cab pneumatic valve control system allows the driver to switch all spraying modes directly via dashboard switches.
Q4: Can the truck pump water from rivers or ponds?
A: Yes. The engine-driven PTO pump 60CBM/h supports self-priming suction up to 7M deep from natural water sources.
Q5: How do I choose between 4×2, 6×4, and 8×4 chassis?
A: Select based on tank capacity:
• 4×2 (6-Wheeler): For 5 CBM- 15CBM (urban/nimble).
• 6×4 (10-Wheeler): For 15CBM – 22CBM (mining/construction).
• 8×4 (12-Wheeler): For 25CBM+ (heavy-duty payload).
