Chassis：Dongfeng Dolica (4×2 Drive, LHD/RHD optional)
Body Capacity：4 / 5 / 6 / 8 cbm (Customizable)
Body Material：High-tensile carbon steel (Q235)
Lifting Cycle Time：12 seconds

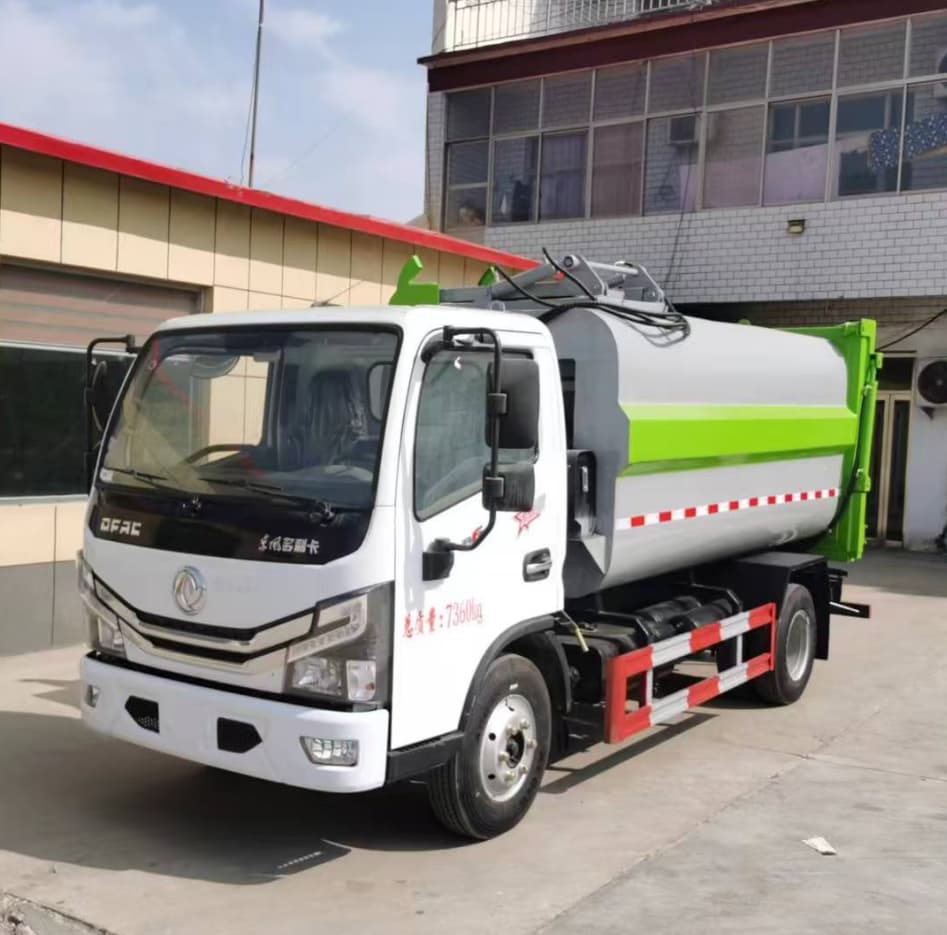

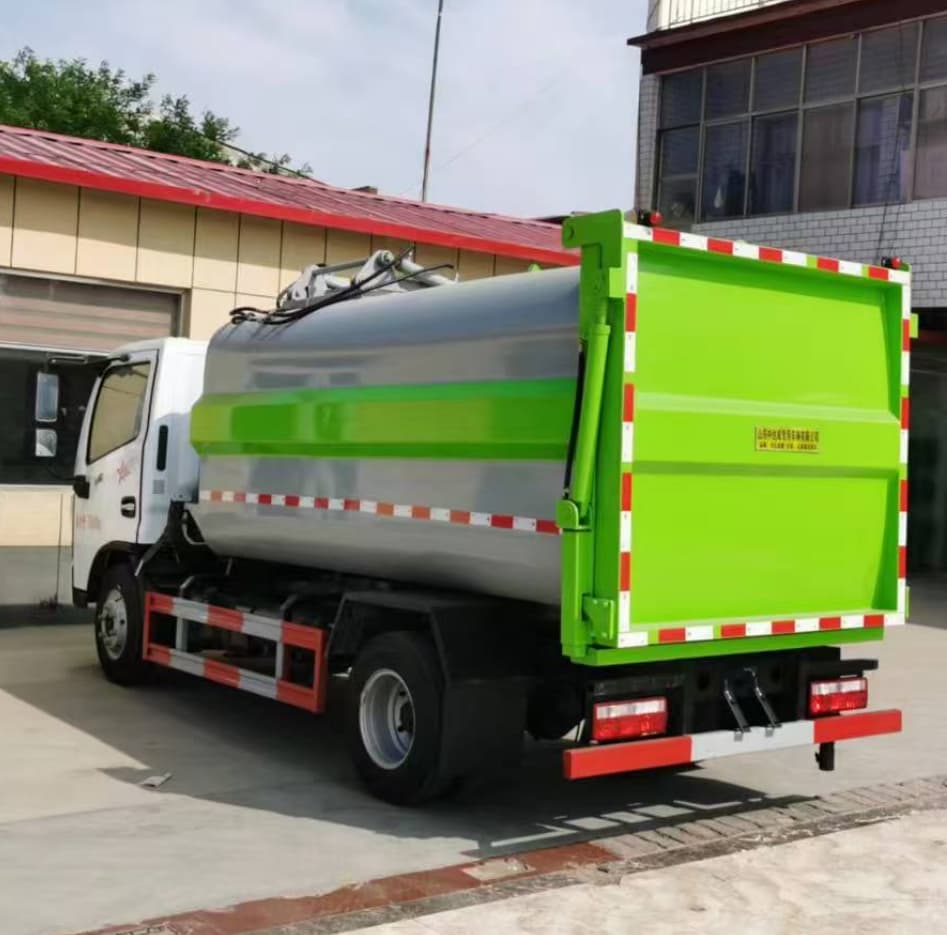

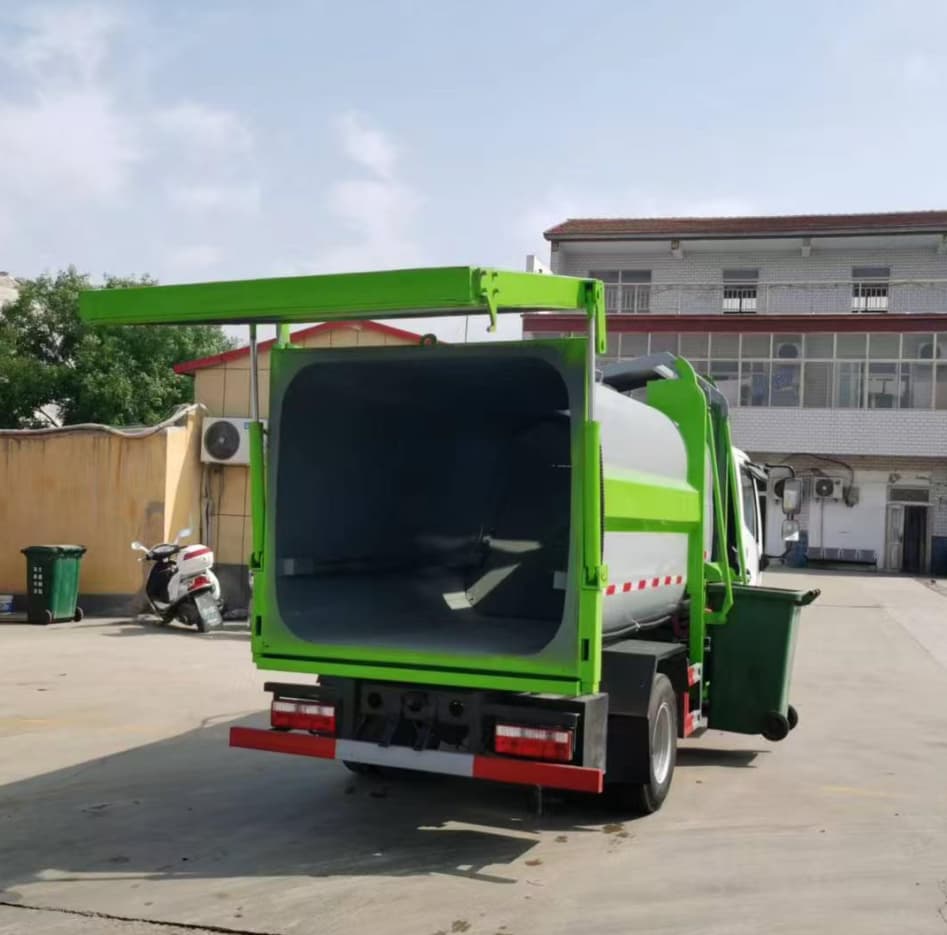

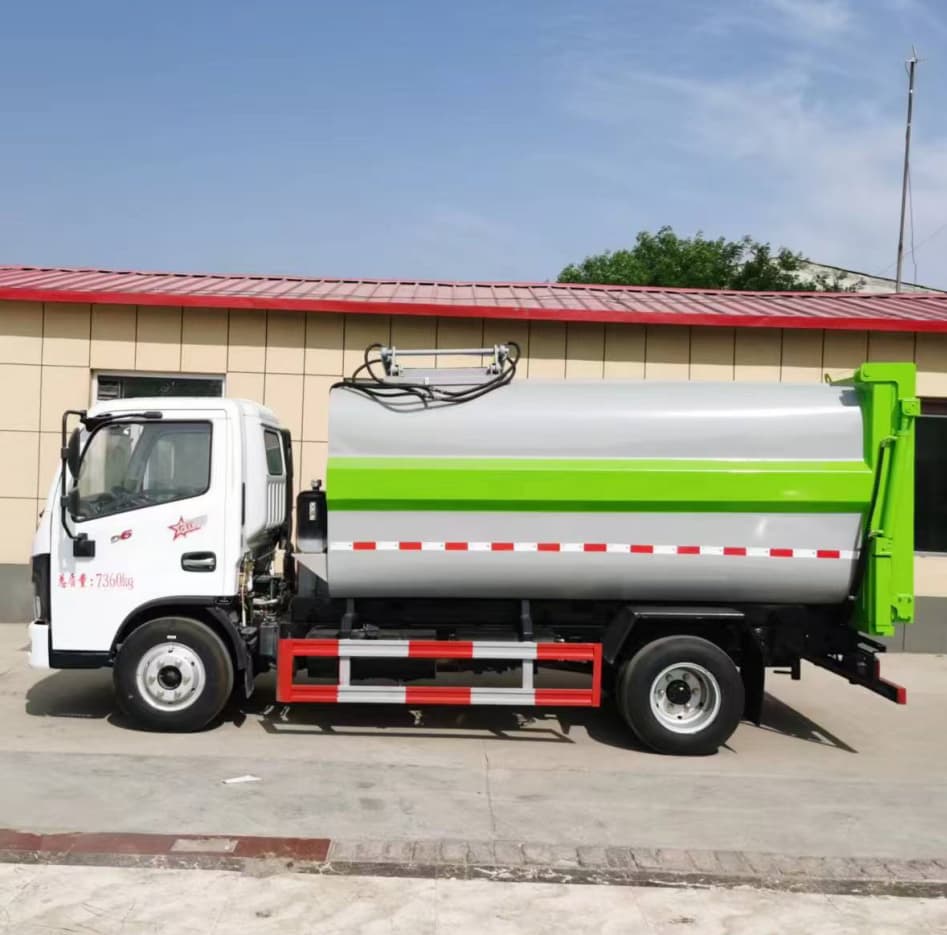

The Dongfeng Dolica 4X2 Side Loader Garbage Truck is a high-efficiency urban waste collector. It features a reliable Dongfeng chassis and an automated hydraulic lifter compatible with standard 120L/240L bins. Its built-in compaction system maximizes payload, while the 100% leak-proof body ensures zero-leakage transport. Perfect for single-operator residential cleaning.
Benefits
1. Lower Labor Costs (Single-Operator Control)
Automated Side Loader Garbage Truck allow a single driver to control the robotic arm from the cab. Eliminating extra workers drastically cuts labor costs and minimizes workplace injury risks.
2. High Route Efficiency (Zero Traffic Disruption)
Operating parallel to the curb, side loaders collect waste quickly without blocking narrow streets or traffic, speeding up residential routing cycles by up to 30%.
3. Maximum Payload (Smart Trash Compaction)
Fully compatible with standard 64/96-gallon roll-out bins, the built-in hydraulic packer compresses waste in real-time, maximizing payload and reducing trips to the landfill.
Specifications
Chassis
| Item | Specifications |
| Brand / Model | Dongfeng Dolica (4×2 Drive, LHD/RHD optional) |
| Gross Vehicle Weight (GVW) | 4,500 kg – 8,275 kg (Depending on exact tonnage) |
| Wheelbase | 3,308 mm / 3,800 mm |
| Engine Options | Chaochai / Yuchai / Cummins Diesel Engine |
| Engine Power | 102 hp – 150 hp (Euro 2 / 3 / 4 / 5 / 6 emission standard) |
| Transmission | 5-speed or 6-speed manual gearbox |
| Brake System | Air brake / ABS equipped |
| Tire Size | 7.00R16 / 7.50R16 Steel wire tires |
Body
| Item | Specifications |
| Body Capacity | 4 / 5 / 6 / 8 cbm (Customizable) |
| Body Material | High-tensile carbon steel (Q235) / Weather-resistant steel |
| Lifting Mechanism | Side hydraulic bin lifter (Chain type or Robotic arm) |
| Compatible Bins | Standard 120L / 240L / 660L plastic or steel trash bins |
| Lifting Cycle Time | 12 seconds |
| Compaction System | Built-in hydraulic pusher / slider (Compaction ratio 1:2 to 1:3) |
| Discharge Method | Hydraulic tipping (Ejection plate type optional) |
| Control System | Manual hydraulic levers + Cabin joystick control (Optional) |
| Sewage System | Wastewater collection tank with leakage-proof drainage valve |
FAQ
Q1: What waste bins are compatible with this truck?
A: Standard 120L, 240L, and 360L plastic/steel bins (DIN standards). The lifting arm can also be customized for 660L/1100L containers.
Q2: What is the compaction ratio of the truck?
A: It features a built-in hydraulic packer with a compaction ratio of 1:2 to 1:2.5, doubling or tripling the loading capacity compared to regular trucks.
Q3: How does the truck discharge waste?
A: Via a high-angle hydraulic tipping system (up to 45°) combined with an internal hydraulic push-plate for fast and clean discharging.
Q4: How do you prevent wastewater leakage?
A: Side Loader Garbage Truck uses a 100% leak-proof welded body, a dedicated sewage collection tank, and heavy-duty rubber seals to prevent any dripping during transport.
Q5: Can the lifting arm be operated inside the cabin?
A: Yes. We offer standard external manual valves or an optional in-cab electronic joystick with a camera system for single-operator efficiency.
Q6: What chassis brands and steering options are available?
A: We offer Dongfeng, Sinotruk (HOWO), Shacman, and Foton chassis in both LHD (Left-Hand Drive) and RHD (Right-Hand Drive) configurations.
