Tank Capacity: 15,000 Liters (15m³)
Chassis Platform: SINOTRUK HOWO TX (4×2)
Pump Flow Rate: 60 m³/h
Front Flush Width: ≥ 14m
Water Cannon Reach: ≥ 30m

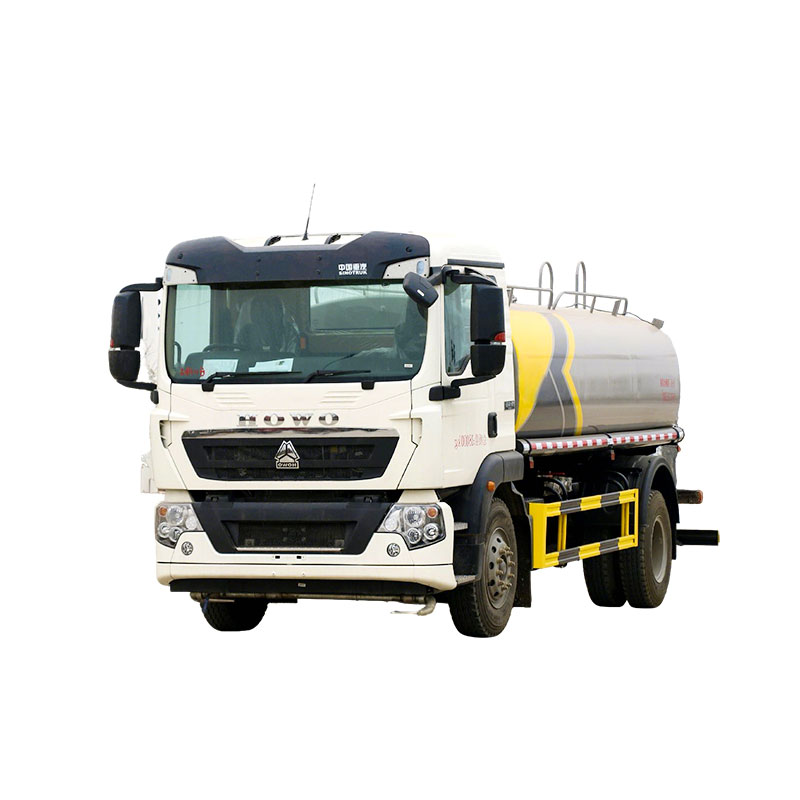

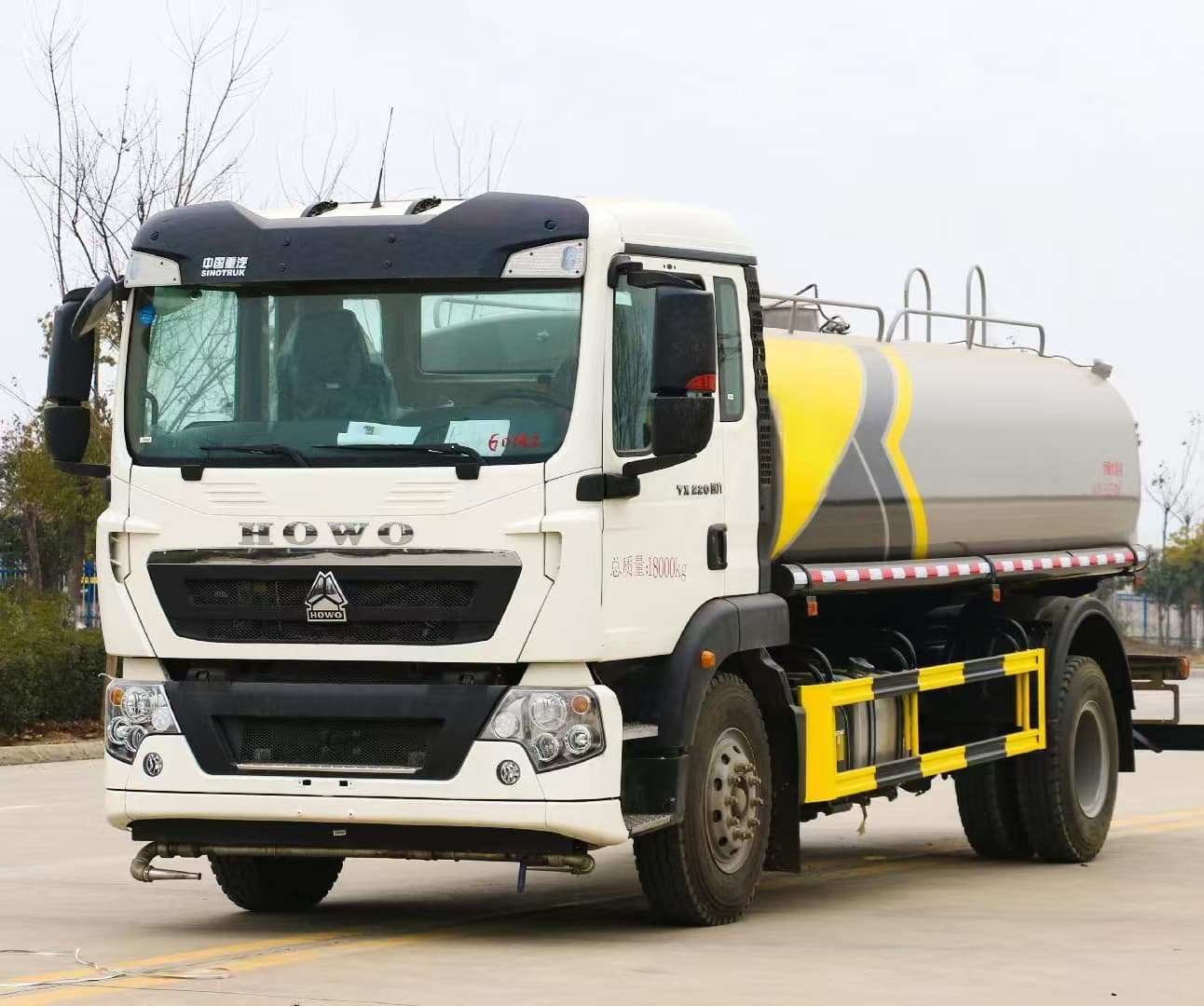

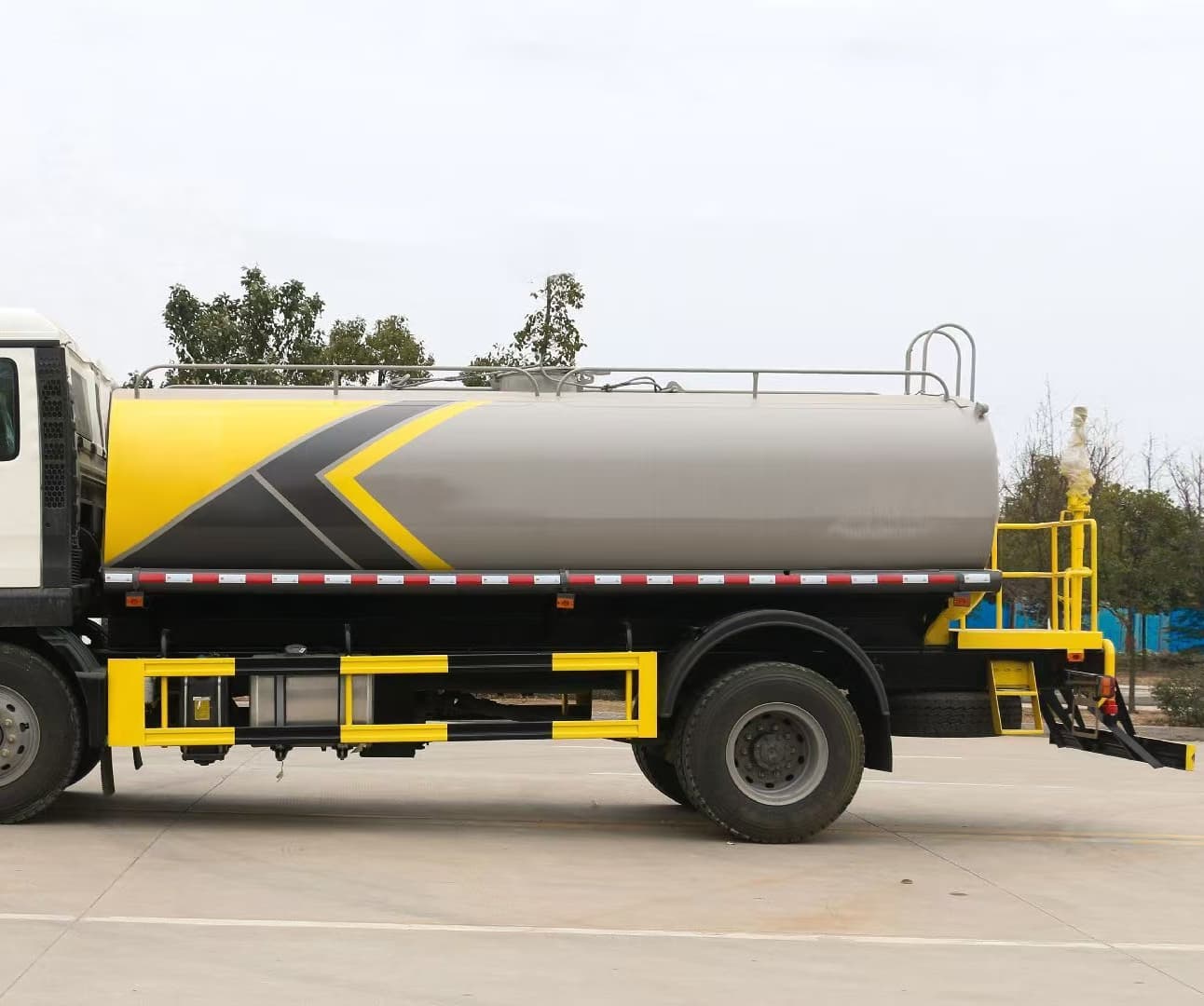

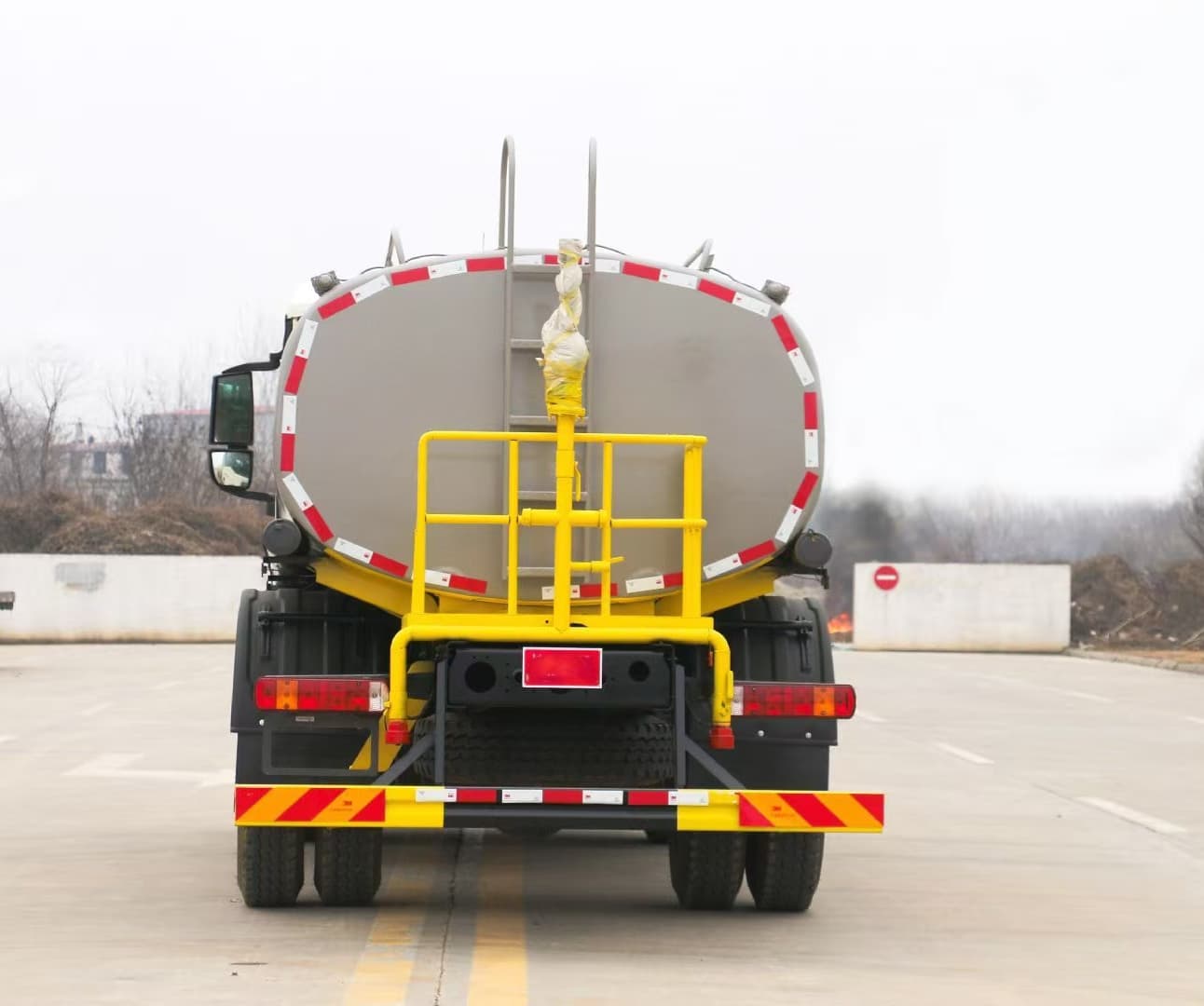

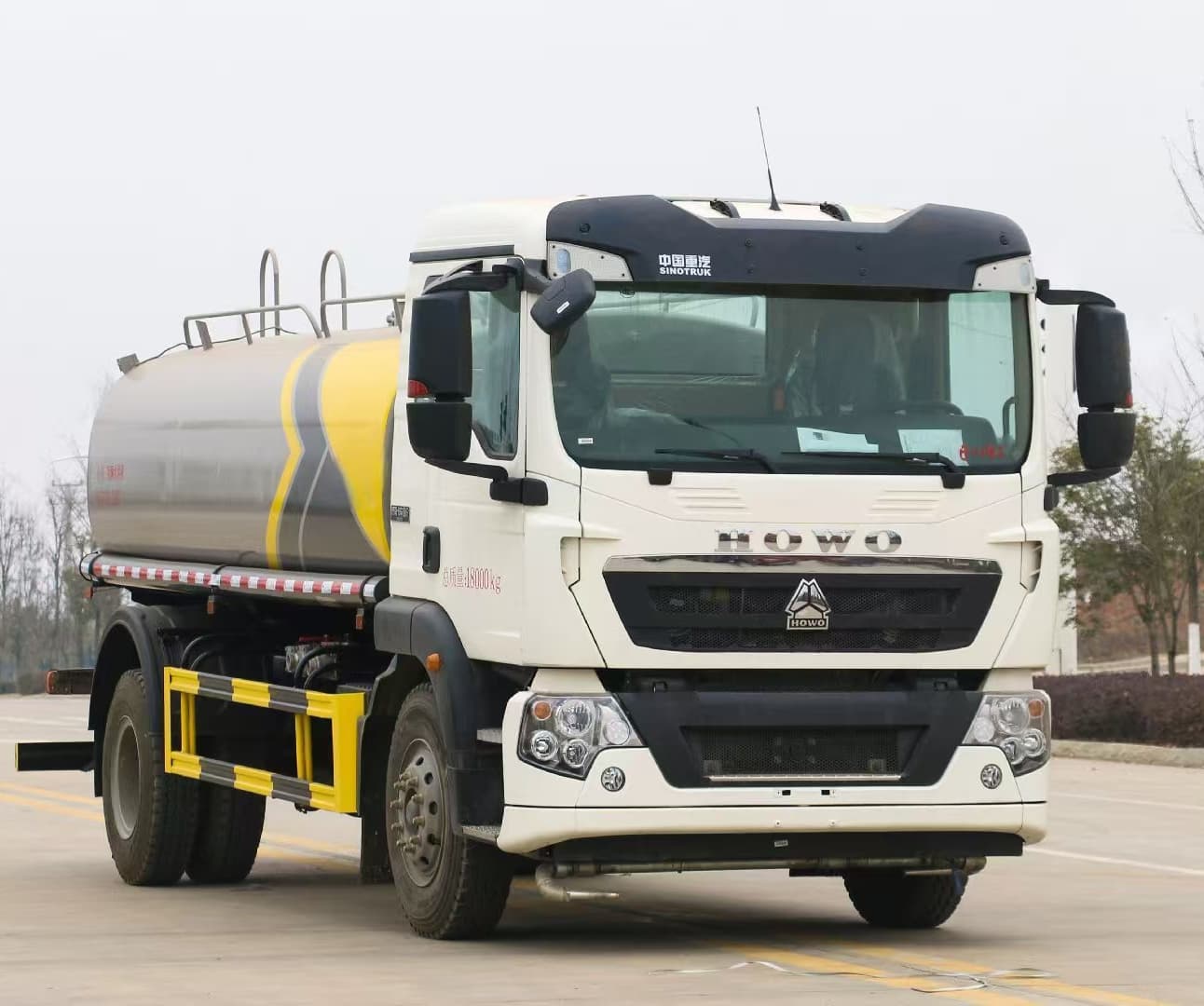

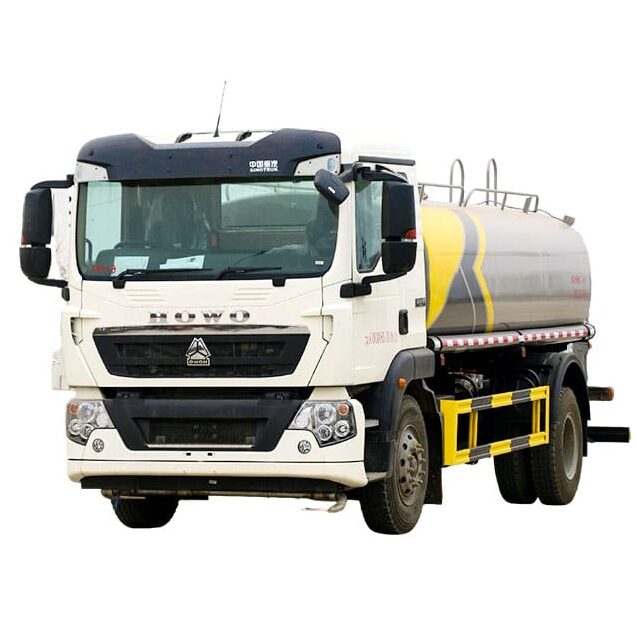

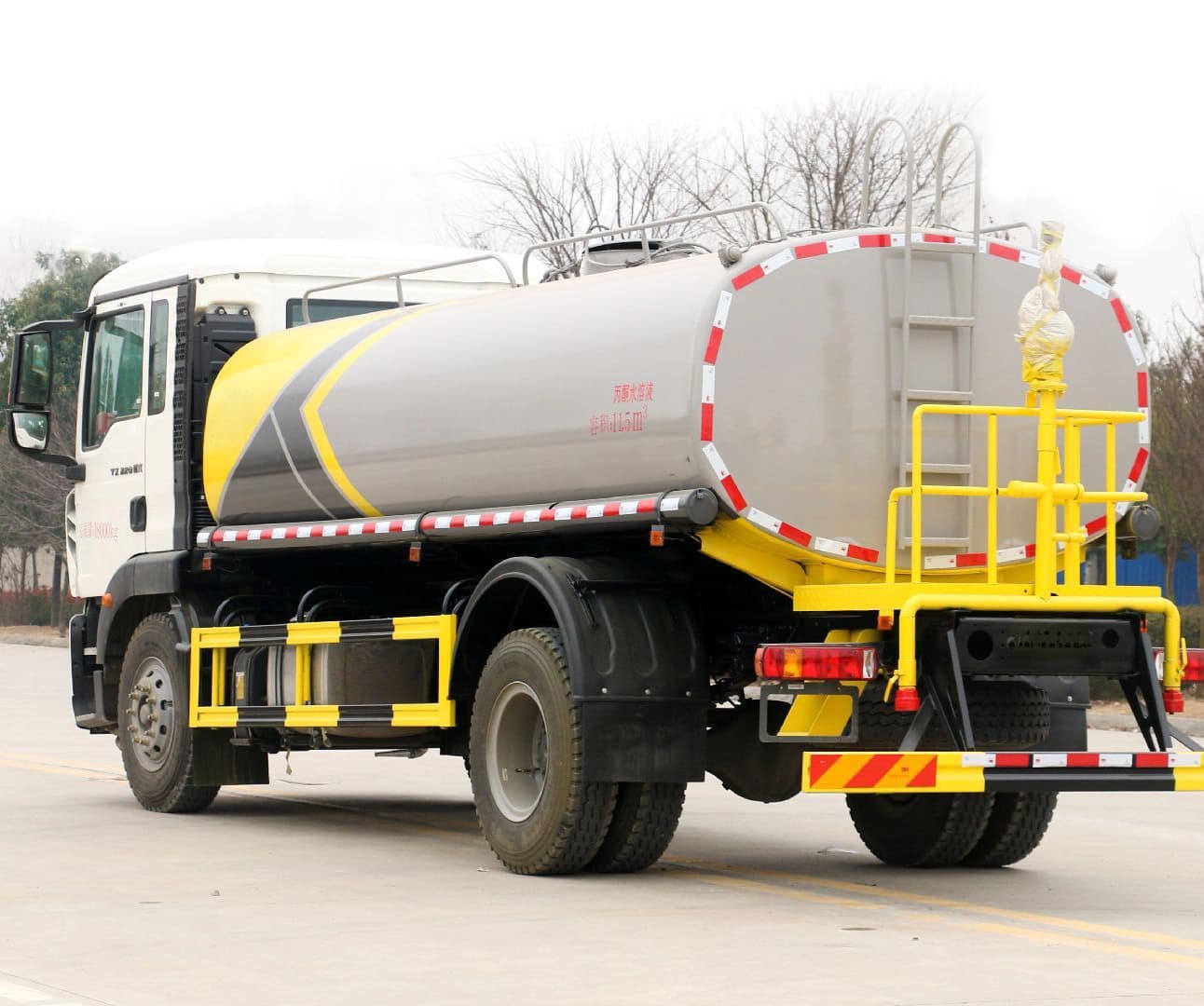

The HOWO TX 4×2 15m³ Water Sprinkler Truck is a premium, high-efficiency urban sanitation workhorse. Built on the rugged TX chassis, it features an optimized 15-ton capacity tank treated with advanced anti-corrosion lining for a maximized lifespan. Driven by a powerful engine and calibrated PTO, its high-pressure system operates a heavy-duty front-bumper flushing mechanism to clear road debris, wide rear sprinklers for dust suppression, and a 360º rotating water cannon—all managed effortlessly via smart, in-cab controls.
Benefits
1. Premium Anti-Corrosion Tank
High-tensile steel with an advanced internal epoxy coating guarantees zero rust and a maximized service life.
2. Front-Bumper Road Flushing System
Water Sprinkler Truck equipped with high-impact front flush nozzles (duckbill nozzles) that deliver powerful water pressure to sweep away road dirt and debris instantly.
3. Long-Range 360º Water Cannon
Features wide rear dust-suppression sprinkling alongside a 360º rotating water cannon with a 30m reach for greening and emergency firefighting.
4. Smart In-Cab Controls & PTO
Driven by a rugged chassis and optimized PTO for steady high pressure, with all spraying modes controlled effortlessly from inside the cabin.
Specification
| Item | Specification |
| Model | HOWO TX 4X2 |
| Drive type | 4×2 |
| Tank volume | 15 m³(15000 L) |
| Emission | Euro VI |
| Engine | 220 HP |
| Wheelbase | 4700 mm |
| Dimensons | 8530×2500×3200 mm |
| GVW | 18000 kg |
| Max speed | 90 km/h |
| Water pump | Self-prming |
| Spray width | ≥20m |
| Cannon range | ≥35m |
| Functons | Front flush,rear sprinkler,side spray,water cannon |
FAQ
Q1: What tank material is used, and is it rust-proof?
A: HOWO TX 4×2 15m³ Water Sprinkler Truck built with 5mm high-tensile Q235 carbon steel (or 304 stainless steel). Carbon steel tanks feature an internal epoxy anti-corrosion coating to guarantee zero rust.
Q2: What are the spraying functions and ranges?
A: Features a front flush (14m width via duckbill nozzles), wide rear sprinkle for dust suppression, and a 360º water cannon 30m for greening.
Q3: Can the spray system be controlled from the cabin?
A: Yes. An in-cab pneumatic valve control system allows the driver to switch all spraying modes directly via dashboard switches.
Q4: Can the truck pump water from rivers or ponds?
A: Yes. The engine-driven PTO pump 60CBM/h supports self-priming suction up to 7M deep from natural water sources.
Q5: How do I choose between 4×2, 6×4, and 8×4 chassis?
A: Select based on tank capacity:
4×2 (6-Wheeler): For 5 CBM- 15CBM (urban/nimble).
6×4 (10-Wheeler): For 15CBM – 22CBM (mining/construction).
8×4 (12-Wheeler): For 25CBM+ (heavy-duty payload).
