Product Overview

This HOWO high-reach foam fire truck is a heavy-duty firefighting vehicle designed for industrial fire protection, chemical plants, oil depots, rescue teams, fire training, and emergency response operations. The vehicle is equipped with a 16-meter two-section folding boom, a powerful fire pump, a wireless remote-controlled fire monitor, and a combined water and foam tank system.

Tank Capacity

• Water Tank Capacity: 10 m³
• Foam Tank Capacity: 2 m³

Fire Pump System

• Fire Pump Model: Hangtian CB12/60-TB fire pump
• Flow Rate: 60 L/s
• Pressure: 1.2 MPa
• Maximum Suction Depth: 8 m

Water Outlets and Filling Ports

• Low-pressure Water Outlets: 80 mm × 4
• Water Filling Ports: 80 mm × 2

Fire Monitor System

• Fire Monitor Brand: American Elkhart
• Fire Monitor Type: 100M wireless remote-controlled fire monitor
• Water Jet Range: ≥75 m
• Foam Jet Range: ≥65 m

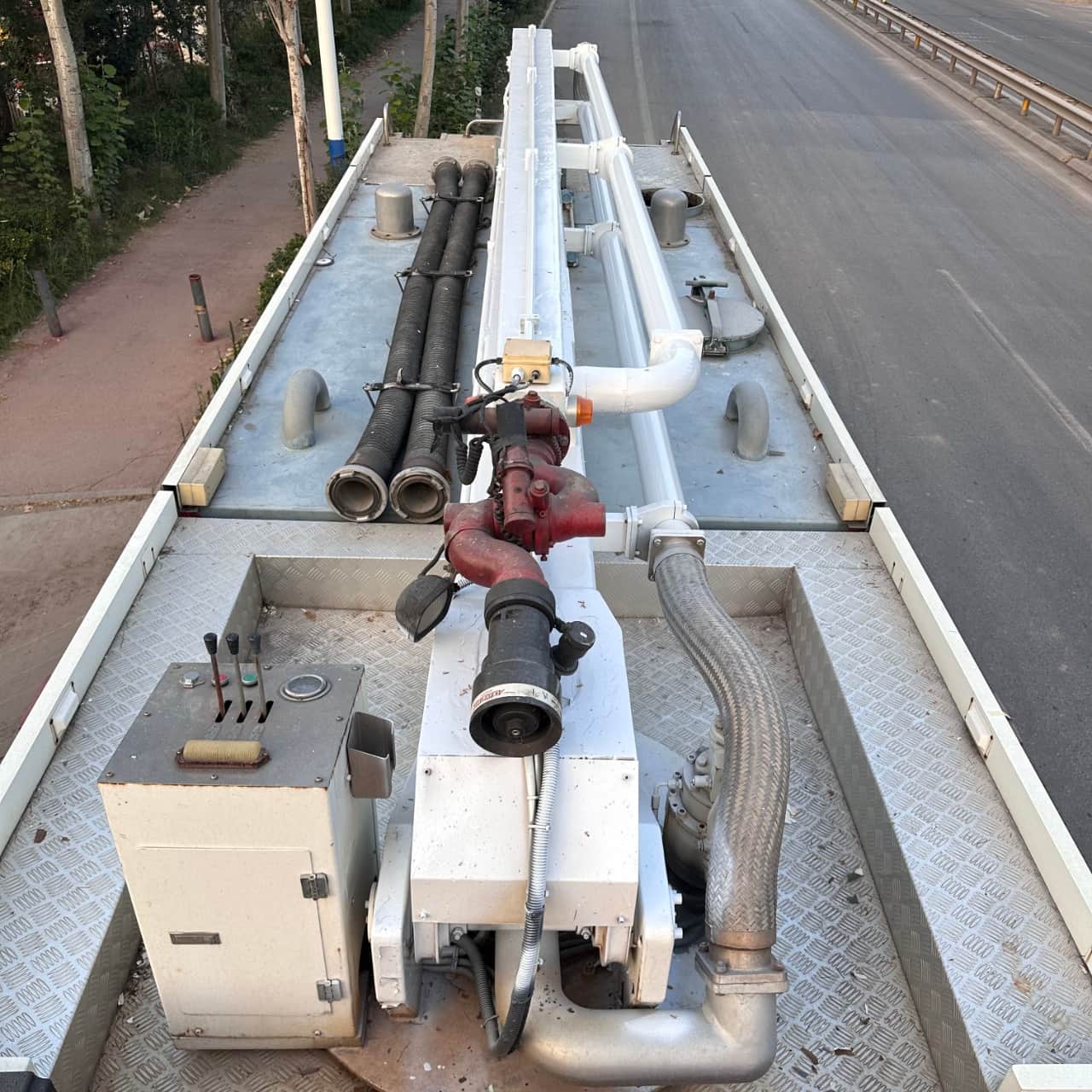

Boom System

• Boom Structure: Two-section folding boom
• Boom Height: 16 m
• Boom Control: Automatic range-limiting system
• Stability System: High-reach anti-sway system for the complete vehicle

The automatic range-limiting system helps control the maximum working range of the boom and improves operational safety during high-reach firefighting.

Warning and Electrical System

• Warning Light: Original Xingji 24V warning light
• Electrical System: 24V system

Equipment Compartments

• Large-capacity multi-functional equipment compartments
• Can be equipped with various firefighting tools and rescue equipment
• Suitable for storage of hoses, nozzles, couplings, rescue tools, and other firefighting accessories

Chassis Information

• Chassis Brand: SINOTRUK Haohan
• Drive Type: Rear double-axle heavy-duty chassis
• Vehicle Condition: Like new

Chassis Configuration

• Engine Brand: SINOTRUK
• Engine Power: 310 HP
• Engine Type: Turbocharged and intercooled diesel engine
• Transmission: Shaanxi FAST 10-speed high-low range gearbox
• Steering System: Power steering
• Brake System: Air brake
• Safety System: ABS anti-lock braking system
• Rear Axle: ST16 double-reduction drive axle
• Tires: 1200R20 tires
• Spare Tire: Unused spare tire
• Windows: Electric windows

Main Advantages

• 10 m³ water tank and 2 m³ foam tank
• 16-meter two-section folding boom
• American Elkhart 100M wireless remote-controlled fire monitor
• Water jet range ≥75 m
• Foam jet range ≥65 m
• Hangtian CB12/60-TB fire pump with 60 L/s flow rate
• 1.2 MPa pump pressure
• Automatic boom range-limiting system
• High-reach anti-sway system
• Heavy-duty SINOTRUK Haohan chassis
• 310 HP SINOTRUK engine
• FAST 10-speed transmission
• Large-capacity equipment compartments
• Suitable for water and foam firefighting operations

Application

This HOWO high-reach foam fire truck is suitable for:

• Factories
• Chemical plants
• Oil depots
• Industrial parks
• Rescue teams
• Fire training centers
• Schools
• Emergency rescue operations
• High-position firefighting
• Long-distance water and foam discharge

Summary

This HOWO high-reach foam fire truck combines a heavy-duty SINOTRUK Haohan chassis, 10 m³ water tank, 2 m³ foam tank, 16-meter folding boom, 60 L/s fire pump, and American Elkhart wireless remote-controlled fire monitor. With strong firefighting performance, long jet range, stable boom control, and practical equipment storage, it is a reliable firefighting solution for factories, chemical plants, oil depots, rescue teams, and fire training applications.
