Chassis Model : SINOTRUK SITRAK 6×4 or 8×4
Water Tank : 8,000 L / 10,000 L
Foam Tank : 2,000 L / 4,000 L
Tank Material : 316L Stainless Steel / PP Composite

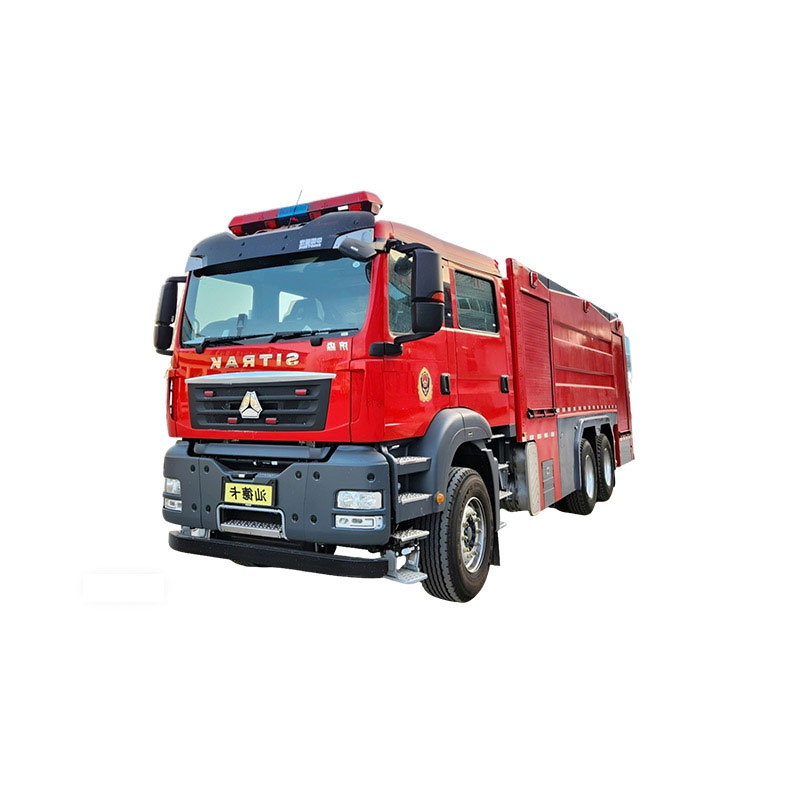

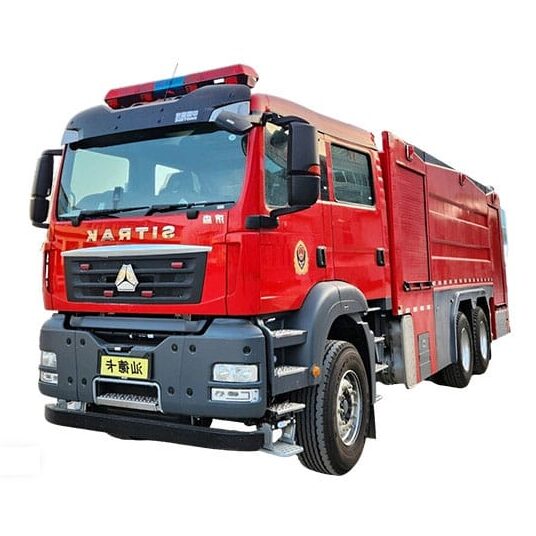

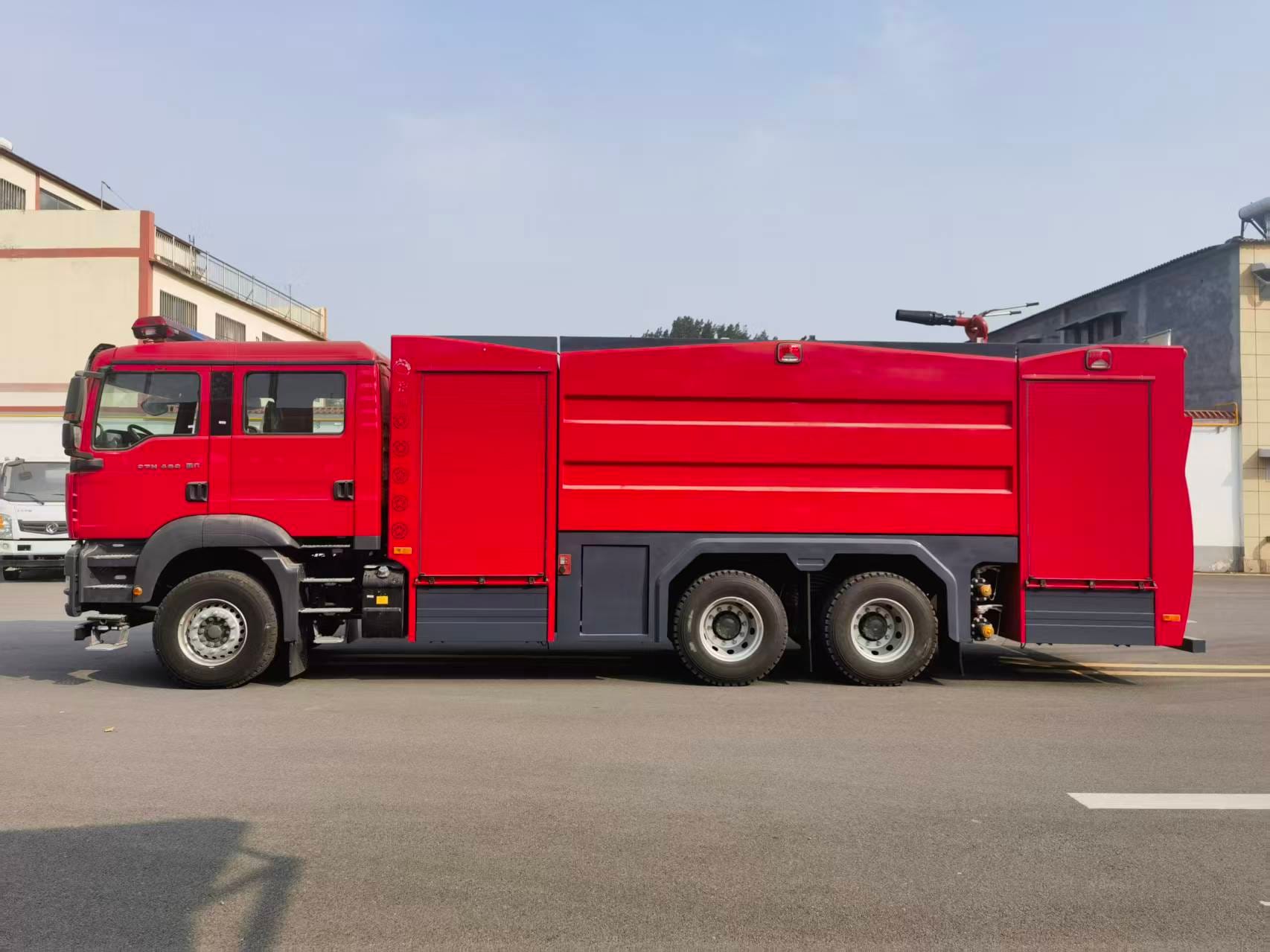

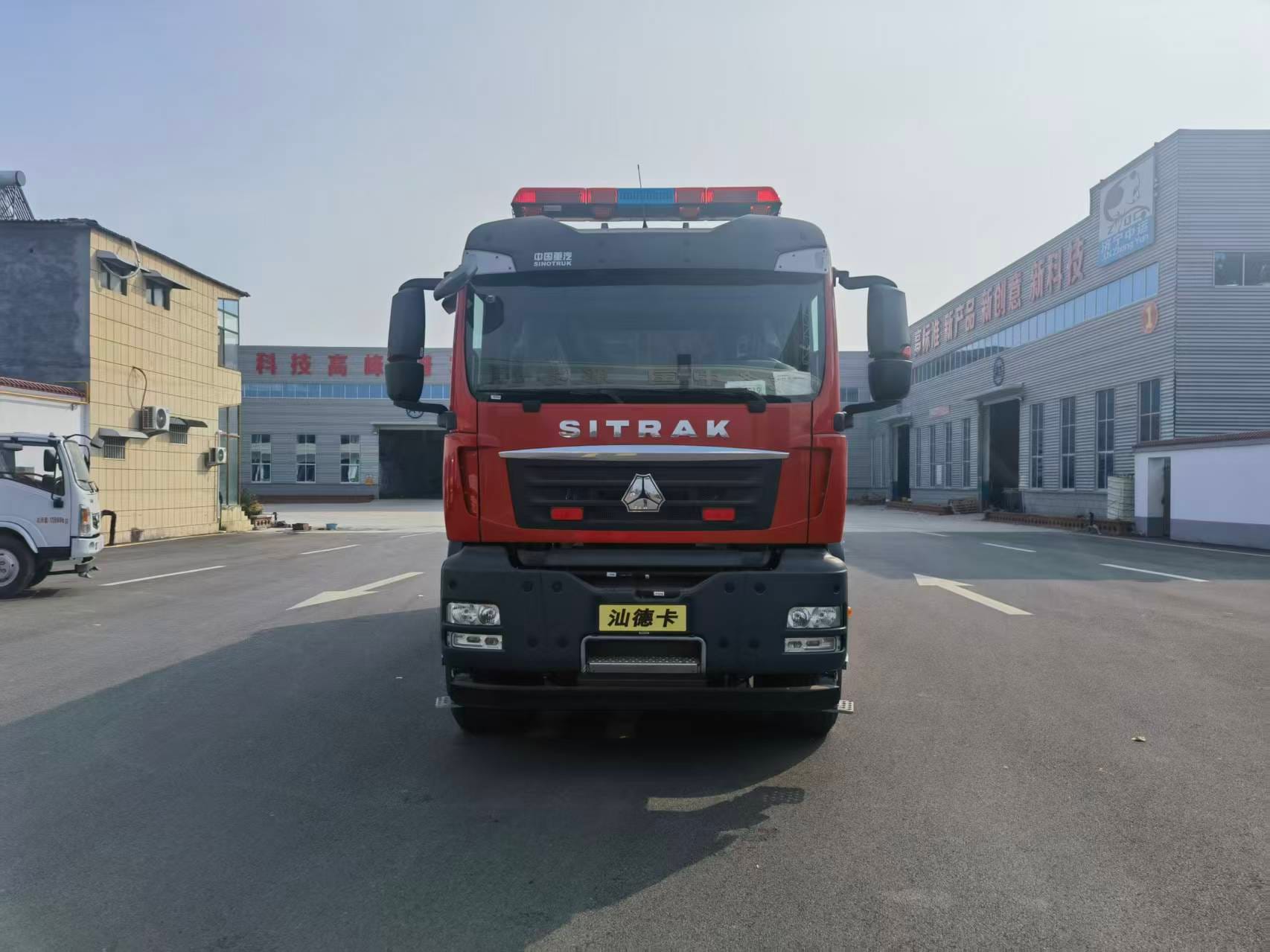

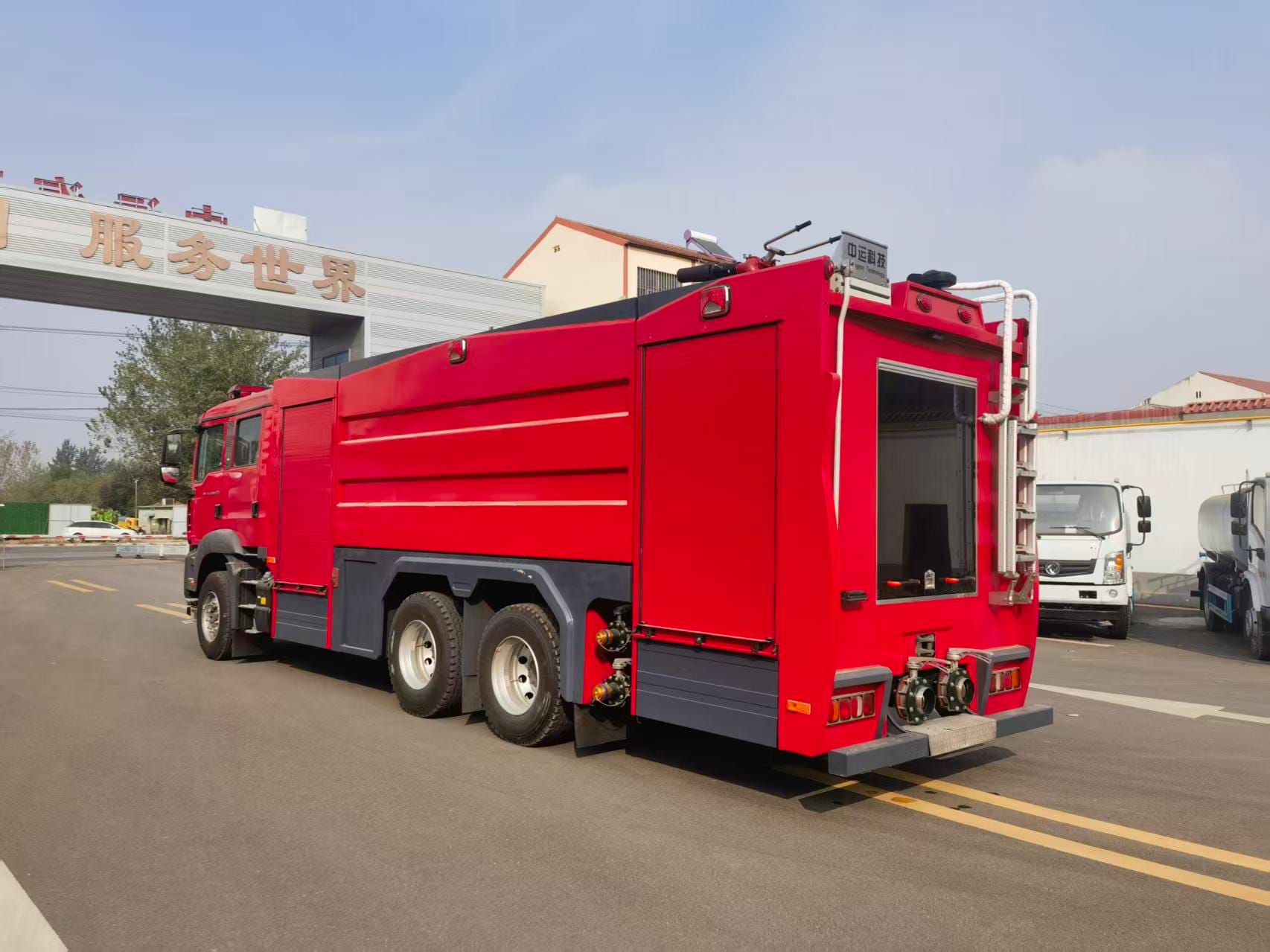

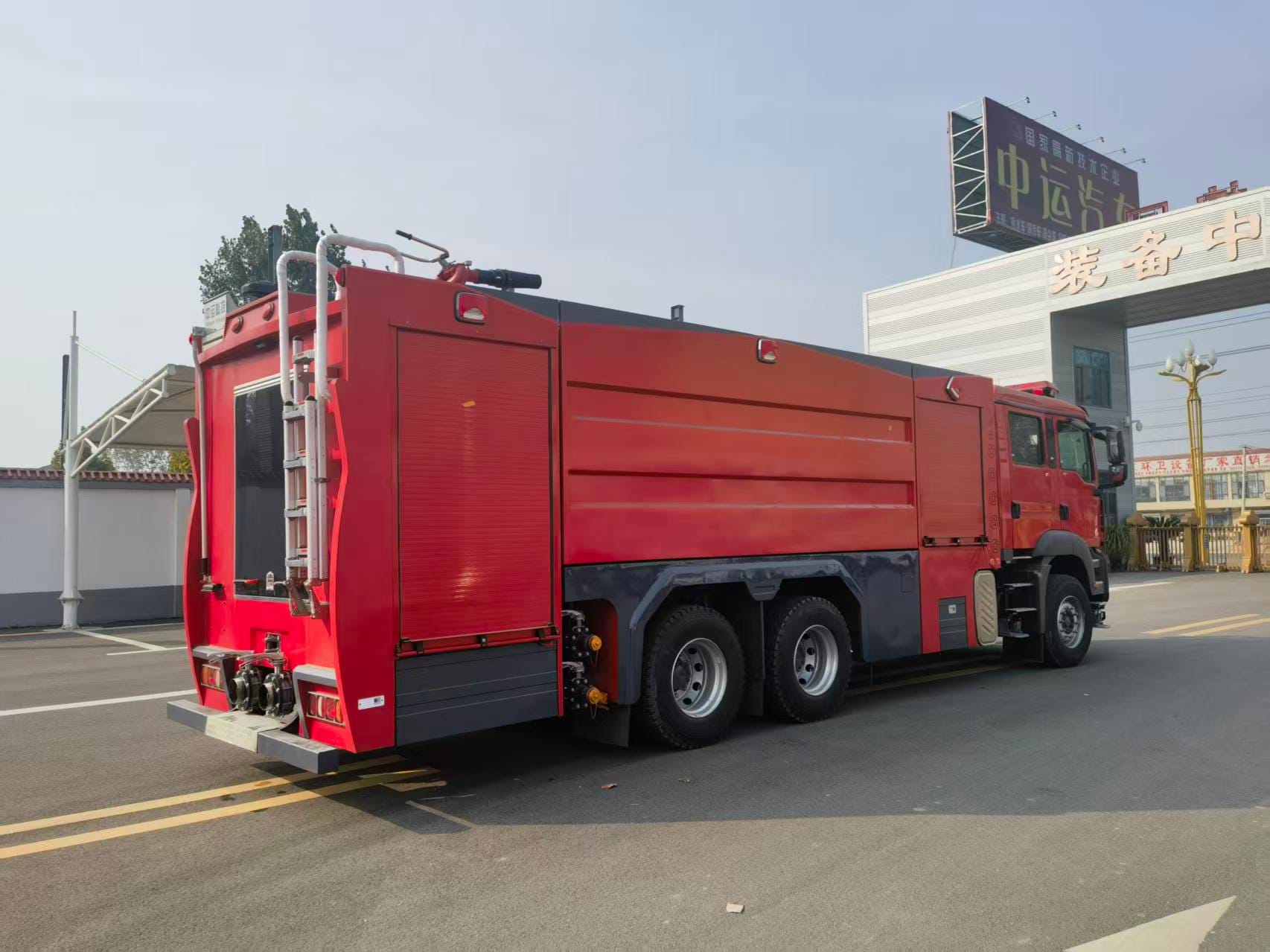

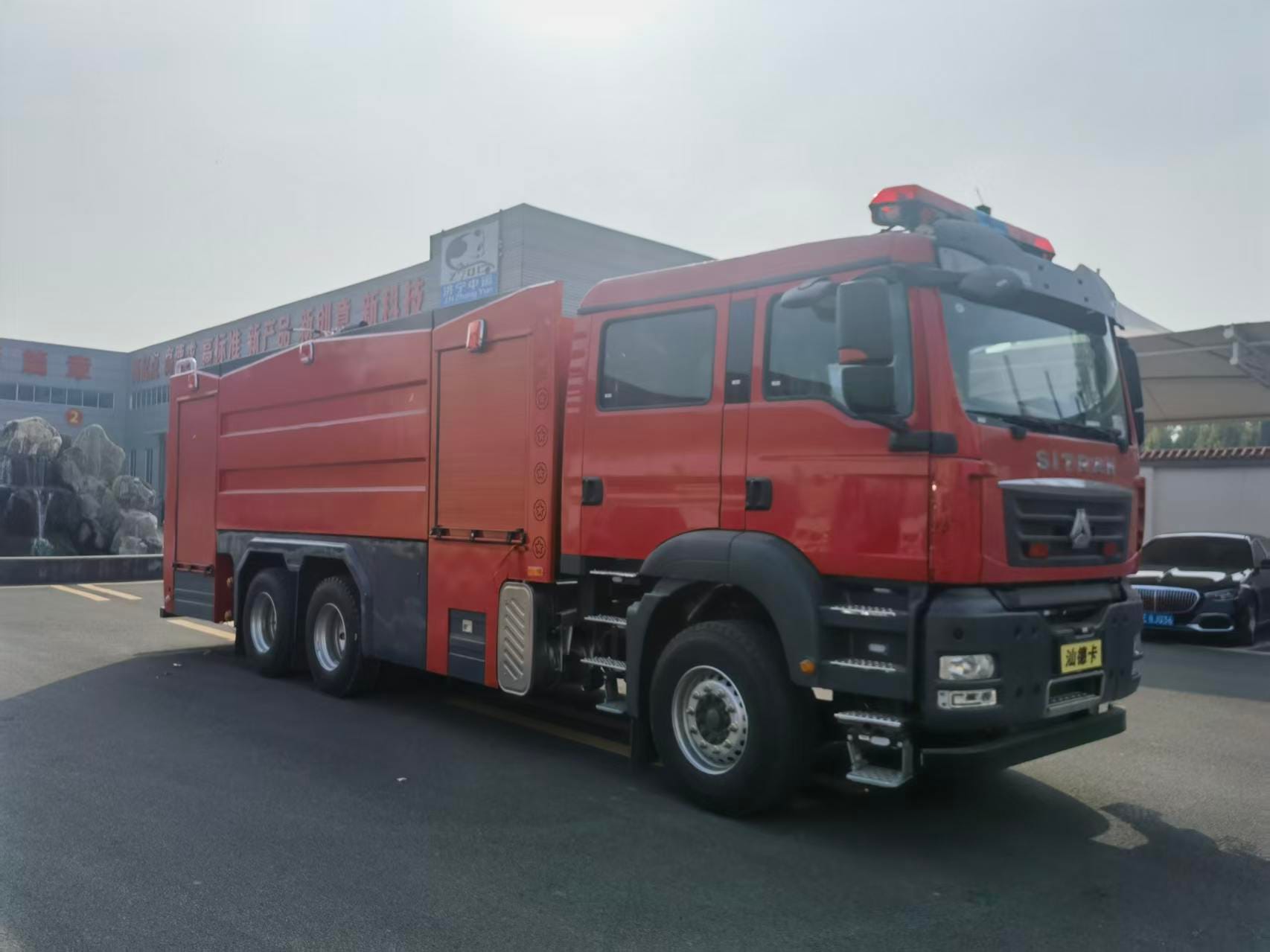

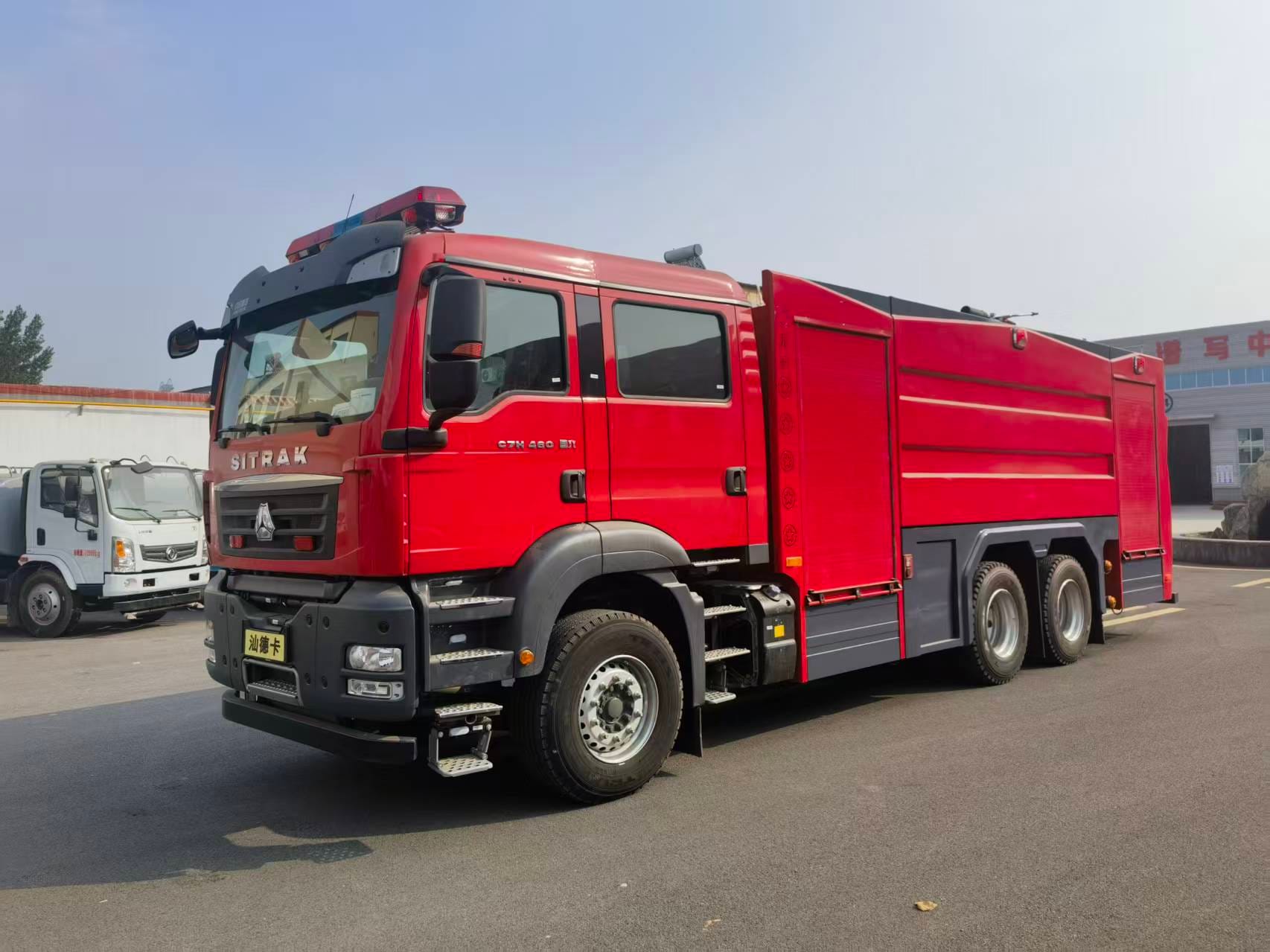

This versatile Sinotruk Sitrak Water and Foam Fire Truck is an indispensable all-in-one responder for diverse high-risk fire emergencies. Equipped with independent tanks and an advanced proportioning system, it allows firefighters to instantly switch agents to tackle different fire classes: it uses water spraying to efficiently extinguish Class A structural fires (wood, paper, and buildings) and foam suppression to smother volatile Class B flammable liquid fires (fuel spills, gas stations, oil storage, and petrochemical plants). This dual capability makes it the ultimate firefighting solution for urban areas, industrial zones, highways, and logistics hubs where flexible, rapid-response intervention is vital.
Benefits
1. German-engineered chassis
Utilizing MAN engine and ZF gearbox from Germany, it boasts the top-tier stability and high uptime of imported vehicles.Working continuously for extended periods in harsh, high-temperature environments.
2. Strength power
Equipped with a full-power PTO, this ensures that the water pump and foam system have a continuous and undiminished power supply when spraying water while driving or when spraying foam at high pressure for extended periods.
3. Heavy-duty and high-capacity
Water and Foam Fire Truck has an ultra-large liquid carrying capacity of 8-16 tons (water + foam), equipped with high-specification fire pumps and fire monitors, its water jet range can reach over 70 meters, and its foam jet range can reach over 65 meters, easily handling large-scale fires or fires in mid- to high-rise buildings.
4. Robust and corrosion-resistant
Employing a lightweight aluminum alloy superstructure and special corrosion-resistant tank body, it is resistant to foam liquid corrosion and durable.
Specification
| Item | Specification |
| Brand &Model | Sinotruk Sitrak Zz5356v524mf5 |
| Overall Dimensions | 10540×2530×3780 mm |
| Gross Vehicle Weight | 32450 kg |
| Engine | MC11.46-61,341 kW,10518L,Diesel,Euro VI |
| Drive Type | 6×4,Wheelbase:1600+1400 mm |
| Cabin | 4-door double-row,6 persons(2+4) |
| Max Speed | 90 km/h |
| Fire Pump Flow | 80 L/s @1.0 MPa |
| Tank Volume | 15.5 m³water(JMF160) |
| Fire Monitor Range | ≥70m(water) |
| Transmission | Manual,FullPower PTO |
| Tire Size | 385/65R22.5/315/80R22.5 |
FAQ
Q1: Emission & Fuel?
A: We offer Euro 2/3 for high-sulfur fuel regions (Africa/Central Asia) and Euro 5/6 for strict regulatory markets (South America/Middle East).
Q2: Chassis Reliability?
A: Sitrak is built on German MAN technology. It delivers European-standard durability, uptime, and extreme heat resistance at a much better price.
Q3: Pump and Roll?
A: Yes. Equipped with a Full-Power Sandwich PTO, it fully supports firefighting while the vehicle is in motion.
Q4: Tank Anti-Corrosion?
A: Tanks use 316L Stainless Steel, heavy-duty Epoxy Coating, or PP/GRP composites to 100% prevent foam chemical corrosion.
Q5: Performance & Range?
A: Armed with world-class pumps (Darley/Godiva/Top Chinese brands). Water range: 70m+ / Foam range: 65m+.
Q6: Coupling Standards?
A: 100% customized. We pre-install Storz, John Morris, NH, or Gost couplings to perfectly match your local fire hose standards.
Q7: Language & Manuals?
A: All cabin/pump control panels, gauges, and manuals are in 100% English (Spanish/French also available).
Q8: Spare Parts?
A: Since it shares German MAN DNA, core parts are globally available. Plus, Sinotruk’s worldwide service network ensures rapid parts delivery.
